How to set high speed PVC zipper doors?

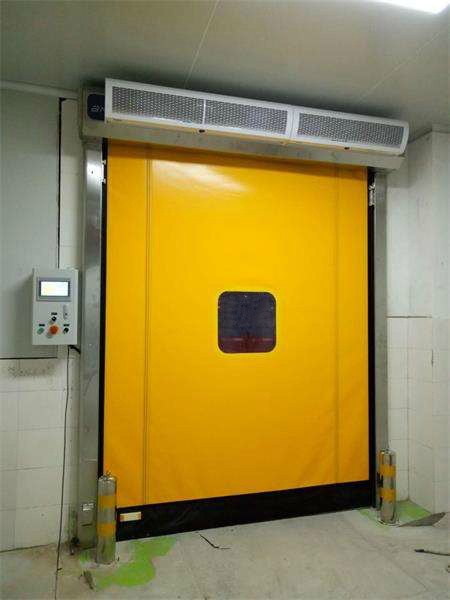

High-speed PVC self-repairing zipper door has many functions such as heat preservation, cold preservation, insect proof, dustproof, sound insulation and anti-odor. It is widely used in food, chemical, textile, electronics, printing, supermarket refrigeration assembly, precision machinery, logistics and warehousing. The site can meet high-performance logistics and clean places, save energy, improve air conditioning effect, and automatically open and close the door at high speed to achieve greater energy saving.



Let's first take a look at the configuration of the zipper door. The zipper door should be set accordingly:



First, how to set the high-speed PVC self-repairing zipper door motor;

High-speed PVC self-repairing zipper door’s drive system can provide the below brand: SEW, Siemen, SNMA, SEJ, servo system, and the motor is with hand brake. The power is provided according to the door size, the voltage can be 380V/220V

Power Supply:

Single phase:  Live wire is “L”, Null line is “N”

Three phase:  Live wire is “L,L,L”, Null line is “N”
Motor Wire Connection:

Connect U, V, W on motor to match U, V, W in control box in CORRESPONDENCE.

(If door operation reverses up & down, randomly switch 2 of the 3 terminal U, V, W)

Lo2 & No1 is to connect the motor brake wire (Disconnect the pre-assembled wires if necessary.)

Second, how to set high-speed PVC self-repair zipper door on control box

High-speed PVC self-repairing zipper door’s control system is adopted PLC digital programming, to achieve the safety passing of vehicle and goods, and the inverter can be adjusted the speed. We can provide the brand of inverter: Mitsubishi, Siemens, SHILIN; the brand of PLC: Mitsubishi, Siemens, KEWEI.

In consider of the high-speed PVC self-repairing zipper door’s safety, we can provide the photo cell, wireless safety airbag device; about the high speed PVC roll up door’s light transmitting, we can provide the different style transparent window; about the different control way, we can provide the manual button, transmitter, control box, radar sensor, geomagnetism.



So In the configuration of the PVC quick zipper door, we need to do some connection accordingly.

Encoder Connection:

Encoder has 5 wires in color: Green, Yellow, Brown, White-pink-blue,

Please connect each color by ONE TO ONE CORRESPONDENCE: X0, X1, 24V, 0V

( If door not working after limit position setting, switch X0 and X1 ).

Photo Beam Sensor Connection:

Option 1: black to IR,blue&yellow connect to 0V, brown connect to 24V;

Option 2: black to IR,blue&white connect to 0V, brown connect to 24V;


Magnetic Loop Connection:

1, 2 connect to 220V power supply(L,N);

3, 4 connect to X7, COM respectively;

7, 8 connect to inductive loop respectively.

Manual Button:

3# connect to COM, 4# connect to X2(UP), X3(DOWN), X4(STOP)
Remote control Connection:

red connect to 24V, white connect to 0V, blue,white,red connect to X2,X3,X4, black connect to COM.

Radar Connection:

brown connect to 24V, yellow-green to 0V, white to X7



Third, how to adjust the limit

1)Upper limit Setting

Debugging status ON  (PLC light “IN6” ON);

Switch the Manual/Auto on control box cover to “Manual” mode;

Press UP button till the upper limit completed;

Press STOP button (light X4 ON), meanwhile holding UP button for at least 5 seconds to memory;

Upper limit setting is done.

2). Lower limit Setting

Debugging status ON  (PLC light “IN6” ON);

Switch the Manual/Auto on control box cover to “Manual” mode;

Press DOWN button till the lower limit completed;

Press STOP button (light X4 ON), meanwhile holding DOWN button for at least 5 seconds to memory;

Lower limit setting is done.

Fourth, how to set the closing delaying time

Debugging status ON  (PLC light “IN6” ON);

Switch the Manual/Auto on control box cover to “Auto” mode;

Press STOP button;

a--Press UP button to increase the auto-closing delaying time, one press equals to 0.5s;

b--Press DOWN button to decrease the auto-closing delaying time, one press equals to 0.5s;
