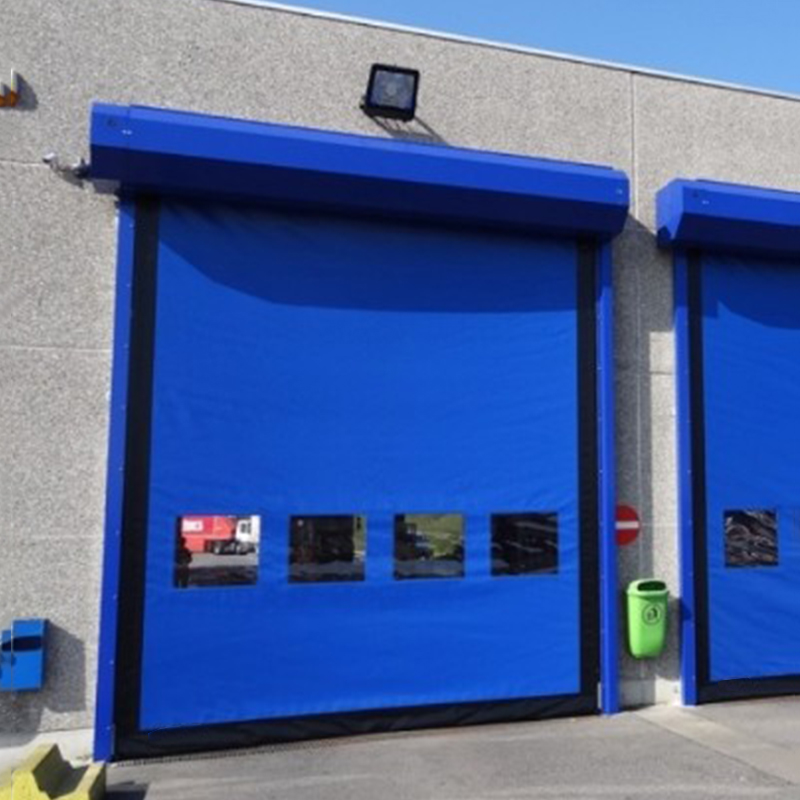

Insulated Interior High Speed PVC Roll Up Doors
1. PVC Rapid rolling door applies to external and internal door of workplace, such as food, medicine, electronic, automobile, logistics and machine. This kind of possessess good wind resistance and heat insulation;
2. Rapid rolling door is stable, high speed, energy saving, eco-environment, sand resistance, insect resistance, easy change and clean;
3. In order to meet the demand of customer, the door can be opened by hand control, radar control, geomagnetic control, stretching wire switch, remote control and remote central control.
4. Common wind pressure: 2-3 class. Daily operation time can be up to 1000 times.
|Applications:||Universal-indoor openings in industrial, storage and commercial facilities|
|Maximum Size:||WxH: 6500mmx6000mm|
|Opening Speed:||0.8m/s-2.0m/s, adjustable|
|Closing Speed:||0.6m/s-1.0m/s, adjustable|
|Working Temperature Range:||-25 to 60 ℃|
|Hardware Materials:||Frame and sides - galvanized steel |
Drive shaft - galvanized steel 2.5mm x Φ114mm
Track guides - aluminum alloy extrusion
Curtain - SIOEN high-strength polyester textile fiber
Vision panel - 1.5mm thick translucent PVC
|Control Box:||Painted steel housing |
Safety class - IP55
Variable speed drive
|Drive System:||Supply voltage - 220V 50Hz/380V 50Hz |
Power - 0.5kw - 5.5kw
Safety class - IP55
Final shaft position indicated by encoder
|Wind Pressure Resistance:||450 N/M2|
|Operating Life:||500 000 cycles|
Standard PVC Color Options:
Q1: What is your MOQ?
A: One set PVC fast rolling door is available.
Q2: How is the motor quality?
A: The motors are good quality and very stable preformance. They are all made in China but German brand.
Q3: How can I get a price of needed high speed pvc fast rolling door?
A: Please give the exactly size and quantity of your required door. We can give you a detail quotation based on your requirements.
Q4: Which kinds of payment you accept?
A: We usually accept T/T in advance, L/C for large sum, Western Union, etc. If you prefer other payments terms, please discuss with us
