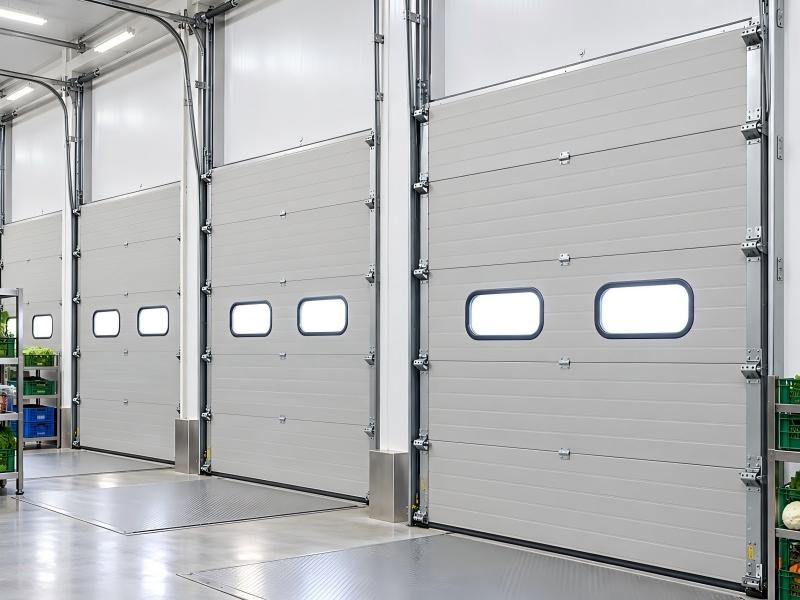

A warehouse sectional garage door is an important part of a commercial building's access system.
It may be used for forklifts, delivery vehicles, loading operations, equipment movement, or internal logistics. Because the door can be opened and closed many times during the working day, selecting the right configuration can have a direct impact on productivity, safety, maintenance, and long-term operating costs.
For warehouse owners, contractors, distributors, and importers, the right selection process should start with the building and application rather than the product price.

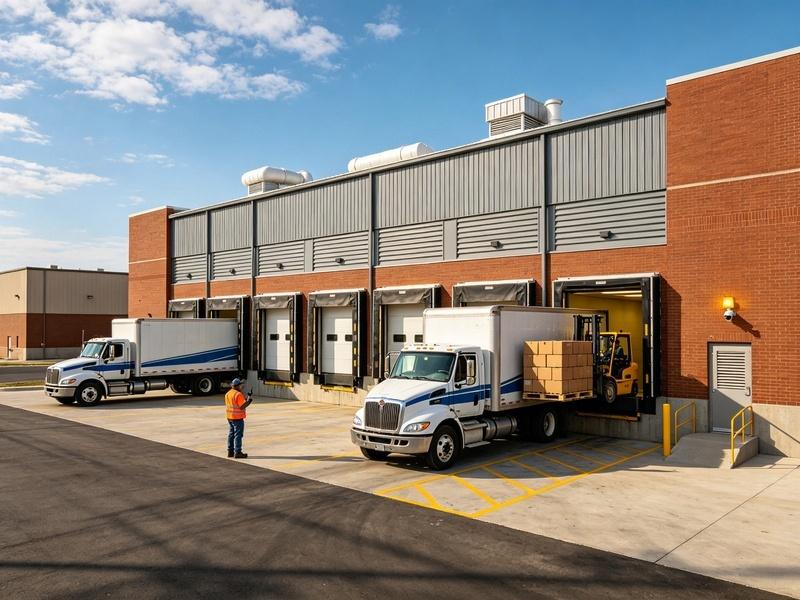

The first step is to understand how the door will actually be used.
Ask:
What type of vehicles pass through the opening?
How many times will the door operate each day?
Is the area temperature controlled?
Is the opening exposed to rain, wind, dust, or extreme temperatures?
Does the warehouse require pedestrian access?
Is visibility important?
Is security a major consideration?
A general storage warehouse and a high-volume logistics center may both require sectional doors, but their specifications can be very different.

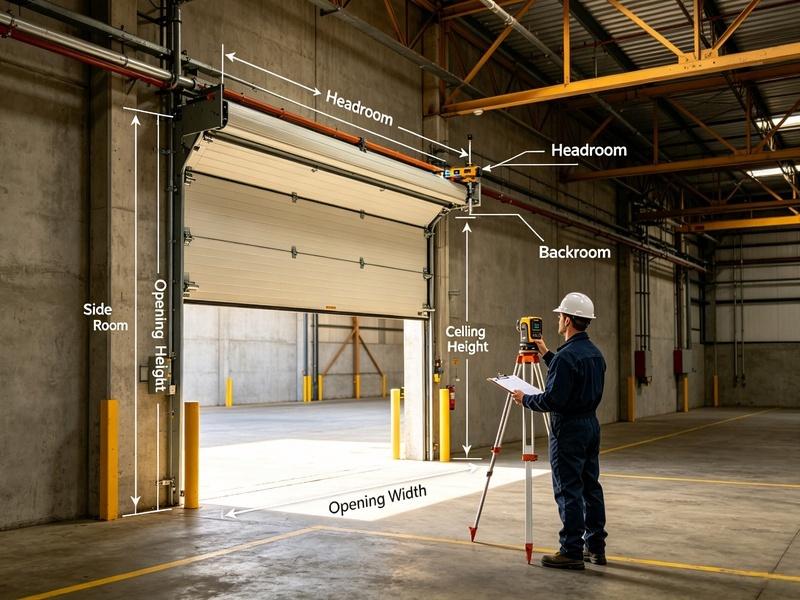

Before contacting a sectional garage door supplier, collect accurate building measurements.
Important dimensions include:
Opening width
Opening height
Headroom
Side room
Backroom
Ceiling height
These measurements determine whether a standard-lift, high-lift, or vertical-lift configuration is appropriate.
Incorrect measurements can lead to installation problems, additional modification costs, or delays during a construction project.
For B2B projects, it is recommended to provide the manufacturer with drawings or detailed site measurements whenever possible.
The panel is one of the most important components of an industrial sectional garage door.
For warehouse applications, insulated steel panels are often considered because they combine durability with thermal performance.
Master Well's industrial sectional doors use galvanized steel with PU foam insulation and offer a 40 mm panel configuration for referenced models.
When comparing suppliers, buyers should check:
Panel thickness
Steel thickness
Insulation material
Panel structure
Surface finish
Joint design
Available colors
The objective should be to match the panel construction to the warehouse environment.
Traffic frequency is often overlooked during the purchasing process.
A warehouse door used ten times per day has a very different workload from a distribution center door used hundreds of times.
High-traffic facilities should pay close attention to:
Spring system
Rollers
Hinges
Cables
Tracks
Door operator
Safety devices
Maintenance requirements
The complete system should be specified according to the expected operating cycles.

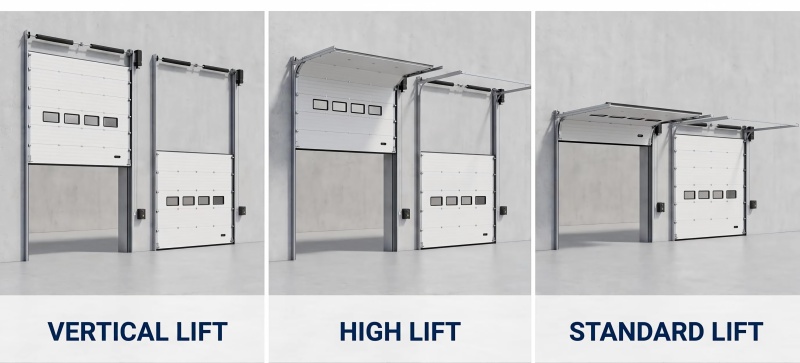

Sectional doors are not limited to one opening method.
Common configurations include:
Suitable for buildings where sufficient headroom is available above the opening.
Useful where the door needs to travel higher before moving into the horizontal position.
Suitable for buildings where ceiling conditions allow the door to travel vertically.
The best configuration depends on the architecture and available installation space.

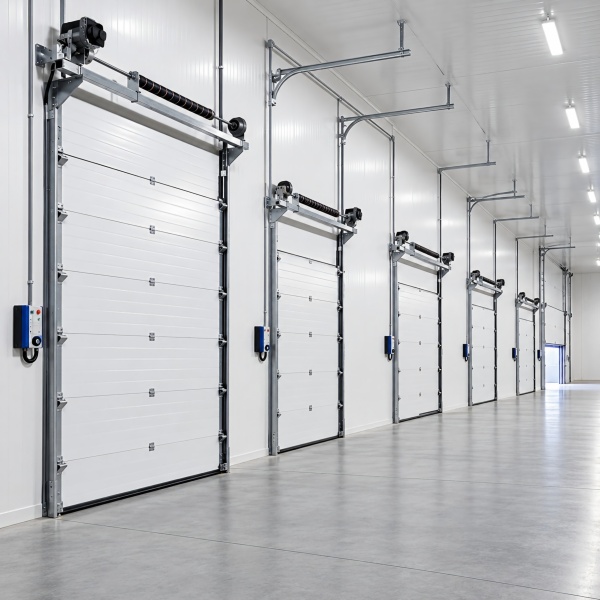

Warehouse sectional garage doors can be operated manually or automatically depending on the application.
Manual operation may be sufficient for smaller openings with limited traffic.
Automatic operation is generally more practical for busy commercial facilities where frequent vehicle movement is required.
Motorized operation can also be integrated with access control systems, remote controls, safety sensors, and other building-management functions depending on the project.
The operator should be selected based on door size, weight, operating frequency, and required control method.
Safety should be part of the initial specification rather than an afterthought.
Potential safety considerations include:
Finger protection
Cable break protection
Spring break protection
Safety edges
Photocells
Emergency release
Manual override
Secure locking
Master Well offers different industrial sectional panel configurations, including finger-protection options, depending on the selected model.
The exact safety configuration should comply with the requirements of the destination market and project.

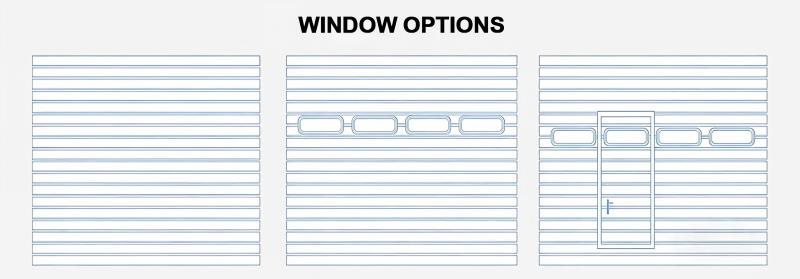

Warehouse sectional doors can be fitted with vision panels where visibility is important.
Windows can help employees see approaching vehicles or people before opening the door.
They may also increase natural light around the entrance.
However, buyers should consider whether visibility, security, thermal performance, and impact resistance are compatible with the intended application.
For areas with high vehicle traffic, the position and construction of vision panels should be carefully considered.
If employees frequently enter and exit the warehouse on foot, a pedestrian door can improve workflow.
Instead of opening a large sectional door every time an employee needs to pass through, a personnel door can provide a dedicated access point.
This can help reduce unnecessary door cycles and improve operational efficiency.
The decision depends on the building layout and local safety requirements.
Climate should influence the specification of a warehouse garage door.
In hot environments, insulation and sealing can help reduce heat transfer.
In cold climates, thermal performance can be important for maintaining indoor temperatures.
In coastal or humid environments, buyers should pay attention to corrosion-resistant materials and surface treatments.
For dusty or industrial environments, sealing and maintenance requirements may become more important.
For distributors and importers, supplier evaluation is just as important as product selection.
A professional manufacturer should be able to provide:
Product specifications
Technical drawings
Installation instructions
Customization options
Packaging information
Spare parts support
Warranty terms
OEM/ODM services
Master Well states that it provides OEM and ODM solutions for distributors, wholesalers, contractors, builders, developers, and brand owners, with a product portfolio covering garage doors, industrial doors, high-speed doors, and loading dock equipment.
Before placing an order, confirm the following:
Item | Key Question |
|---|---|
Opening size | Is the width and height accurate? |
Headroom | Which track configuration is suitable? |
Panel | Is insulation required? |
Traffic | How many cycles per day? |
Operation | Manual or automatic? |
Safety | What protection systems are required? |
Windows | Is visibility needed? |
Pedestrian door | Is separate personnel access required? |
Climate | What environmental conditions apply? |
Supplier | Can technical support be provided? |
Choosing a warehouse sectional garage door requires a complete understanding of the facility.
The correct solution should match the opening dimensions, traffic frequency, climate, insulation requirements, operating method, safety requirements, and building structure.
Instead of selecting a door based only on price or appearance, warehouse buyers should compare the complete system and request detailed technical information from the manufacturer.
A properly specified sectional garage door can provide reliable access, efficient operation, and long-term value for warehouses, distribution centers, factories, and commercial facilities.
A: Consider the opening dimensions, headroom, operating frequency, insulation requirements, climate, track configuration, safety features, operating method, and required customization.
A: The best sectional garage door depends on the warehouse application. Insulated steel sectional doors are commonly considered for facilities requiring durability, thermal performance, and frequent vehicle access.
A: Automatic operation can be beneficial for warehouses with frequent vehicle and forklift traffic. The operator should be selected according to door size, weight, operating frequency, and required control features.
