Insulated Steel Garage Door Buying Guide for Warehouses

For warehouses, the garage door is more than an entry point. It can affect temperature control, security, daily logistics, energy efficiency, and the overall operating performance of the facility. Choosing the right insulated steel garage door therefore requires more than comparing prices or selecting a standard size.

For warehouse owners, contractors, distributors, and project buyers, the key is to select a door that matches the building structure, traffic requirements, climate, and operational environment.

This buying guide explains the most important factors to consider when sourcing an insulated steel garage door for a warehouse.

Why Choose an Insulated Steel Garage Door for a Warehouse?

Warehouse environments can experience significant temperature changes, particularly when large doors are opened frequently. An insulated sectional steel garage door can help reduce heat transfer through the opening while providing a durable barrier between indoor and outdoor areas.

A typical insulated steel sectional door uses a multi-layer panel construction, with steel skins surrounding an insulating core. Master Well's industrial sectional door solutions, for example, use galvanized steel with PU foaming inside the panel structure. The company offers 40 mm panel configurations for certain industrial door models.

The actual thermal performance of a warehouse door depends on more than insulation material. Panel construction, joints, seals, installation quality, and the surrounding building envelope should all be considered.

Start With the Warehouse Application

Before choosing a door, define exactly how the opening will be used.

A warehouse used primarily for storage may have different requirements from a distribution center with continuous forklift and truck traffic.

Consider:

• Vehicle type and dimensions

• Forklift traffic

• Number of daily door cycles

• Indoor and outdoor temperature differences

• Security requirements

• Available installation space

• Whether the area is temperature controlled

For example, a warehouse that operates several shifts per day may require a different configuration from a small storage facility where the door opens only a few times daily.

Understanding the application first makes it easier to determine the appropriate door construction and operating system.

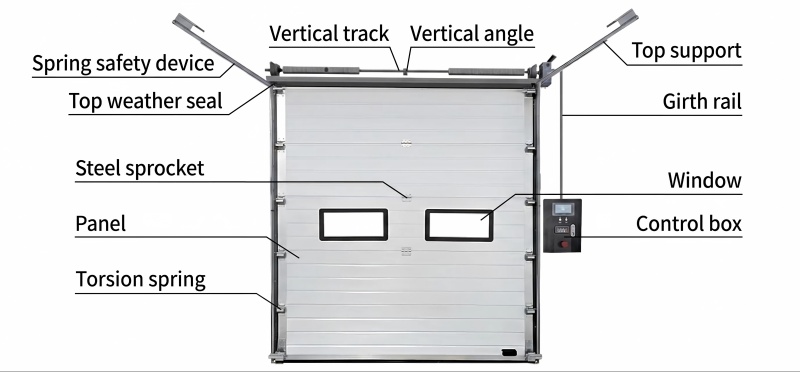

Check Door Size and Building Dimensions

Door dimensions are one of the first technical specifications a manufacturer will need.

Warehouse buyers should provide:

• Clear opening width

• Clear opening height

• Headroom

• Side room

• Backroom

• Ceiling height

• Installation environment

The available headroom is particularly important for sectional garage doors because the track configuration needs to work with the building structure.

Depending on the warehouse layout, buyers may consider standard-lift, high-lift, or vertical-lift configurations. The appropriate option should be confirmed according to the actual building dimensions.

Evaluate Insulation Performance

The word "insulated" alone is not enough when comparing warehouse garage doors.

Buyers should ask suppliers for technical information about:

• Panel thickness

• Insulation material

• Panel construction

• Thermal performance

• Air sealing

• Door perimeter seals

• Joint design

Master Well's commercial door information highlights the use of polyurethane insulation and sealing systems between panels and around the door leaf to improve air tightness and reduce heat transfer.

For temperature-controlled warehouses, these details become especially important.

However, buyers should avoid evaluating thermal performance solely by panel thickness. The complete installed door system and the building envelope both influence real-world results.

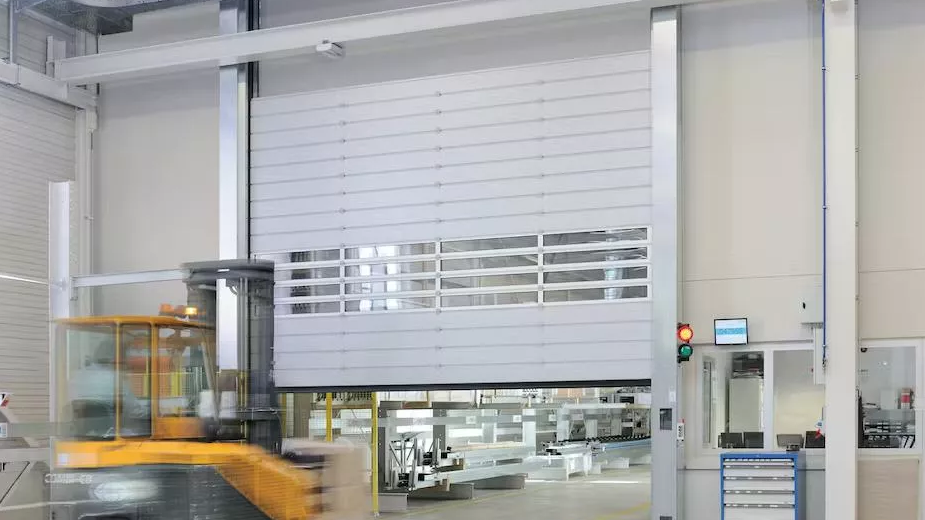

Consider Warehouse Traffic Frequency

Traffic frequency should directly influence the garage door specification.

A warehouse entrance may be used for:

• Forklift movement

• Delivery trucks

• Loading and unloading

• Equipment transportation

• Internal logistics

• Employee access

A low-traffic storage warehouse may not require the same operating configuration as a high-volume distribution center.

For busy facilities, buyers should discuss expected operating cycles with the manufacturer before finalizing the door. Hardware, lifting mechanisms, operators, safety systems, and maintenance requirements should all be matched to the expected workload.

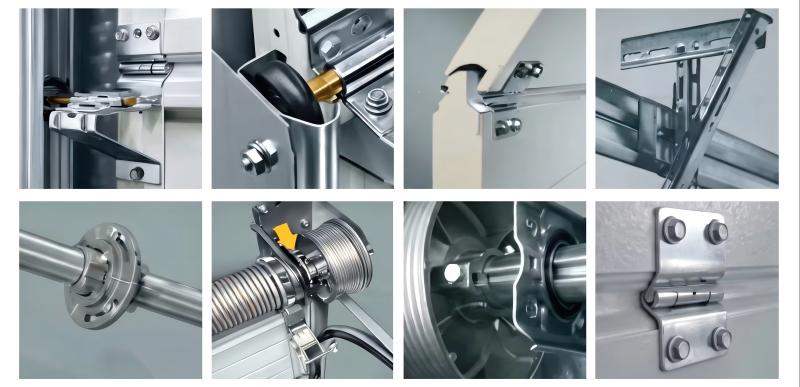

Select the Right Panel and Material Configuration

Steel is widely used for commercial and industrial garage doors because it provides a combination of structural strength, durability, and design flexibility.

For insulated applications, a sandwich-panel construction can provide both mechanical protection and thermal insulation.

Master Well's sectional industrial door range includes galvanized steel panels with PU foam insulation and different panel configurations. Its product range also includes insulated sectional garage doors for commercial and industrial applications.

When sourcing from an overseas manufacturer, buyers should request detailed panel specifications rather than relying only on product names.

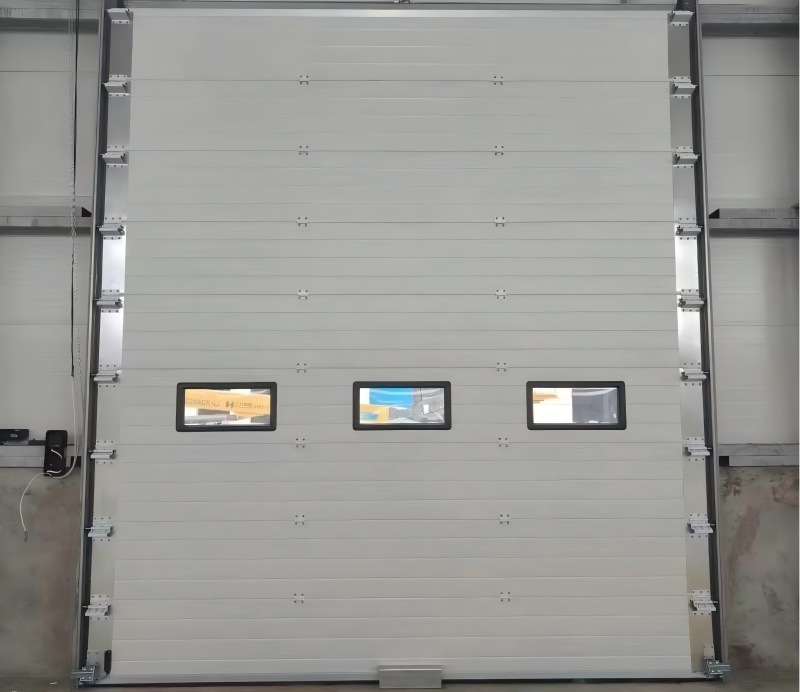

Don't Overlook Windows and Personnel Doors

Warehouse doors do not always need to be completely solid.

Vision windows can improve visibility around the opening and allow additional natural light into working areas. A pedestrian door can also provide convenient personnel access without requiring the complete sectional door to open.

These options can be particularly useful in warehouses where employees frequently move between production, storage, and service areas.

The decision should be based on workflow, security, safety, and the intended use of the opening.

Think About Climate and Working Environment

Warehouse doors may operate in very different environments.

For example:

• Hot and humid climates

• Cold climates

• Coastal environments

• Dusty industrial facilities

• Temperature-controlled warehouses

• General storage buildings

Climate can influence material selection, surface treatment, sealing requirements, and insulation specifications.

For facilities located in areas with significant temperature differences, an insulated steel garage door may provide greater value than a non-insulated configuration.

Compare More Than the Purchase Price

For B2B buyers, the lowest quotation is not necessarily the lowest-cost solution.

A proper comparison should include:

This approach allows distributors, contractors, and warehouse project managers to compare suppliers based on total value rather than unit price alone.

Choose a Manufacturer With B2B Experience

For warehouse projects, supplier capability is as important as the product itself.

A suitable manufacturer should be able to provide technical documentation, customized dimensions, product specifications, packaging information, and communication support throughout the project.

Master Well states that it provides OEM and ODM solutions for distributors, wholesalers, contractors, builders, developers, and brand owners. Its product portfolio covers garage doors, industrial doors, high-speed doors, loading dock equipment, and related accessories.

For large warehouse projects, this broader product capability can also make it easier to coordinate different access and loading systems from the same supplier.

Final Checklist Before Ordering

Before placing an order for an insulated steel garage door, warehouse buyers should confirm:

1. Exact opening dimensions

2. Required headroom and track configuration

3. Expected daily operating frequency

4. Required insulation performance

5. Local climate and environmental conditions

6. Steel and panel specifications

7. Windows or pedestrian door requirements

8. Motor and control requirements

9. Safety and emergency operation

10. Installation drawings and technical documentation

11. Warranty and after-sales support

12. Export packaging and shipping requirements

Conclusion

Choosing an insulated steel garage door for a warehouse is a project decision rather than a simple product purchase.

The right solution should balance insulation, durability, operating frequency, building dimensions, security, safety, and long-term maintenance. Buyers should also evaluate the complete door system instead of focusing on one specification such as panel thickness or insulation material.

For warehouses, distribution centers, manufacturing facilities, and other commercial buildings, a properly specified insulated steel sectional garage door can provide a practical combination of thermal performance, durability, controlled access, and operational flexibility.

By defining the application first and then comparing technical specifications, customization options, supplier capabilities, and total project value, warehouse buyers can make a more informed purchasing decision.

FAQ

Q: What is an insulated steel garage door?

A: An insulated steel garage door is a sectional or overhead door constructed with steel panels and an insulating core. It is commonly used in warehouses, industrial buildings, and commercial facilities where durability and temperature control are important.

Q: Are insulated steel garage doors suitable for warehouses?

A: Yes. Insulated steel garage doors are suitable for many warehouse applications, particularly facilities where temperature control, durability, security and regular vehicle or forklift access are important.

Q: What should I consider when buying a warehouse garage door?

A: Key factors include door opening dimensions, headroom, operating frequency, insulation requirements, climate, panel construction, safety features, track configuration, access requirements and the manufacturer's technical support.

Q: How important is insulation for a warehouse garage door?

A: Insulation can be important when a warehouse is heated, cooled, or temperature controlled. Buyers should evaluate panel construction, insulation material, seals, joints, and the complete installed door system rather than relying only on the word insulated.

Q: Can insulated steel garage doors be customized?

A: Many commercial insulated steel garage doors can be customized according to project requirements, including door dimensions, panel configurations, colors, vision windows, pedestrian doors, and track arrangements.

Q: What information should I provide when requesting a warehouse garage door quotation?

A: Provide the clear opening width and height, available headroom, side room, backroom, building application, operating frequency, climate, insulation requirements, preferred operation method, and any requirements for windows, pedestrian doors or special configurations.
