Introduction to Interface Types of Glass Garage Door Panels

Glass garage doors have become a mainstream choice for modern residential and commercial buildings due to their elegant appearance, good light transmission and strong decorative performance. The panel interface is the core connecting part of the glass garage door, which determines the safety performance, service life, assembly efficiency and overall stability of the door. According to safety structural design, the panel interfaces of glass garage doors are mainly divided into two categories: Finger Protection interface and Non-Finger Protection interface. These two types of interfaces are applicable to different usage scenarios and have distinct structural characteristics and performance advantages. This article will elaborate on their features, strengths and applicable conditions respectively.

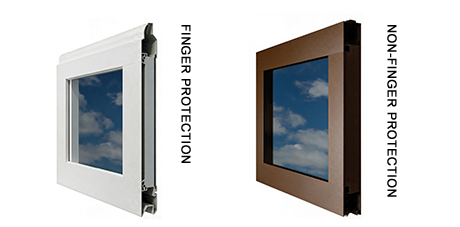

1. Finger Protection Interface

The finger protection interface is a safety-optimized structural interface specially designed for glass garage door panels. It adopts a unique curved closed or fully wrapped splicing structure, which fundamentally eliminates the gap between adjacent door panels during the opening and closing process of the garage door. This innovative structural design avoids the risk of finger extrusion and clamping that may occur when users accidentally touch the door panel gap during operation.

Core Features

First of all, the finger protection interface has an anti-pinch safety structure. The overlapping and wrapping design between panels keeps the fitting gap always closed no matter the door is fully open, fully closed or in a moving state, completely blocking the hidden danger of finger clamping. Secondly, it has high structural stability. The embedded and overlapping splicing mode makes the connection between door panels tighter, effectively reducing panel shaking, dislocation and abnormal noise caused by wind pressure or mechanical vibration during operation. In addition, this interface has good tolerance to installation errors, with high fitting accuracy, and can maintain a flat and neat overall appearance of the door body for a long time.

Main Advantages

The most prominent advantage of the finger protection interface is ultra-high safety. It is especially suitable for family residences with children and the elderly, effectively avoiding accidental injury incidents and greatly improving the safety of daily use. Secondly, it has excellent durability. The tight wrapping structure can reduce the friction and collision loss between panels, slow down the aging of connecting parts, and extend the overall service life of the glass garage door. Moreover, the integrated overlapping structure can enhance the overall airtightness and waterproof performance of the door body, reduce the intrusion of outdoor dust, rainwater and noise, and improve the indoor comfort. In terms of appearance, the seamless splicing effect makes the door panel lines more smooth and integrated, which is more in line with the minimalist and high-end aesthetic of modern buildings.

2. Non-Finger Protection Interface

The non-finger protection interface is a traditional basic splicing structure for glass garage door panels. It adopts a simple butt-joint or semi-open gap splicing design, with no fully wrapped protective structure between adjacent door panels. This interface focuses on basic connection and assembly functions, featuring simple structure, convenient processing and low production cost, and is a cost-effective conventional interface solution.

Core Features

The structure of the non-finger protection interface is simple and straightforward, adopting a flat butt-joint design between panels, with standardized and universal accessories. The processing and molding process is simple, the assembly and disassembly steps are convenient, and the maintenance and replacement of a single door panel are more flexible. Compared with the finger protection structure, it has a certain reserved gap at the panel connection, which can slightly release the structural stress generated by thermal expansion and contraction of the door body in different temperature environments. However, due to the lack of a closed protective structure, there is a movable gap between the panels during the opening and closing of the door body, which has potential clamping risks.

Main Advantages

The primary advantage of the non-finger protection interface is cost control. Its simple processing technology and low accessory requirements greatly reduce the production, processing and installation costs of the garage door, making it very suitable for budget-limited engineering projects and ordinary commercial venues. Secondly, it has strong universality and compatibility, matching most conventional glass garage door models and installation environments, with low threshold for after-sales maintenance and convenient parts replacement. In addition, the reserved splicing gap can avoid the problem of structural jamming caused by thermal expansion and contraction of the door panel in extreme high and low temperatures, ensuring the smooth operation of the door body in conventional environments. Meanwhile, the lightweight structure reduces the overall load of the garage door, lowering the wear and energy consumption of the motor and transmission system.

3. Application Scenarios Summary

In general, the finger protection interface is a high-safety, high-durability premium solution, which is prioritized for high-end residential villas, family garages, high-end commercial office buildings and other scenarios with high safety and appearance requirements. The non-finger protection interface, as a cost-effective basic solution, is widely used in ordinary commercial stores, factory warehouses, public parking lots and other scenarios with low pedestrian contact frequency and sufficient safety protection reminders.
