Automatic Galvanized Steel Overhead Sectional Industrial Doors

Sectional Industrial Doors are widely applied for places of facilities-production, warehouse, commercial, office and other permises with heavy traffic intensity, they consist of three main elements: door leaf, track system and torsion mechanism.

  • SF40S/SF40/SN40/SN50D
  • Master Well
  • 730830
Quantity:

Overview

  • Model: SF40S/SF40/SN40/SN50D

  • Construction: Steel - PU Foam - Steel sandwich construction

  • Size: Customized

  • Max Available Panel Length: 11.8m (To fit the container)

  • Galvanized steel thickness: 0.35mm / 0.45mm / 0.50mm

  • Panel Thickness: 40mm / 50mm

  • Panel Height: 440mm - 550mm, adjustable

  • Color: Normal white RAL9016, Solid color, Timber color, Customized

  • Optional component: Window & Pedestrian

  • Track Lift: Normal lift, High lift, Vertical lift, Declining lift, Middle Axis.



Performance Parameters

  • Wind resistance: Class 3

  • Water tightness: Class 3

  • Noise level: 22db

  • Insulation density: 43-45kg/m³

  • Insulation value: U=1.0 w/m²k

  • Position: Factory / Warehouse / Workshop


Designs


ØIndustrial door

02

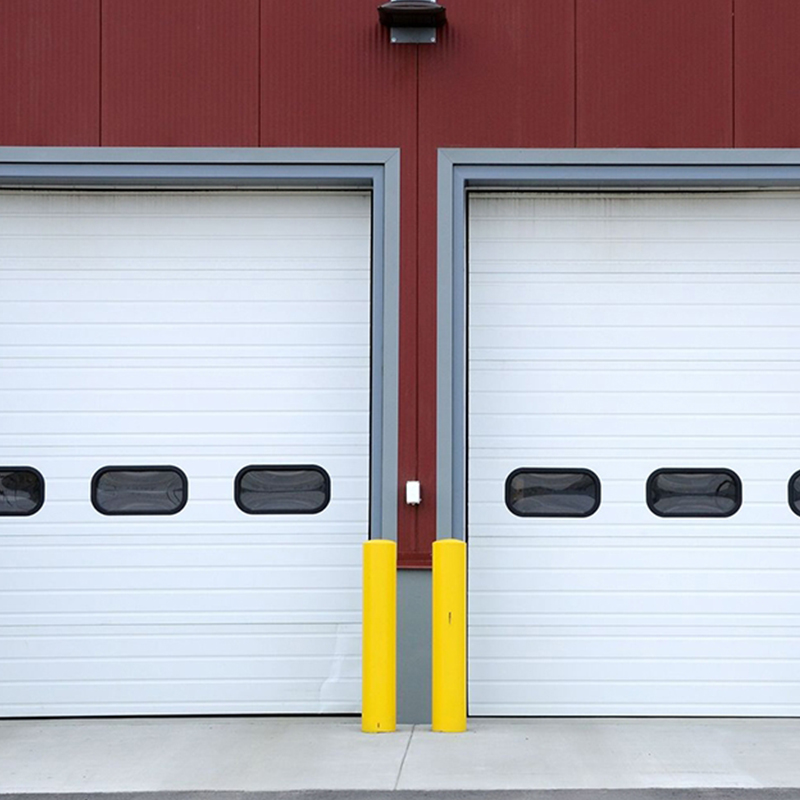

ØIndustrial door with windows

05


ØIndustrial door with glazed aluminium panel

09


ØIndustrial door with small door and windows

21


ØAluminium door with the steel panel and small door

29
