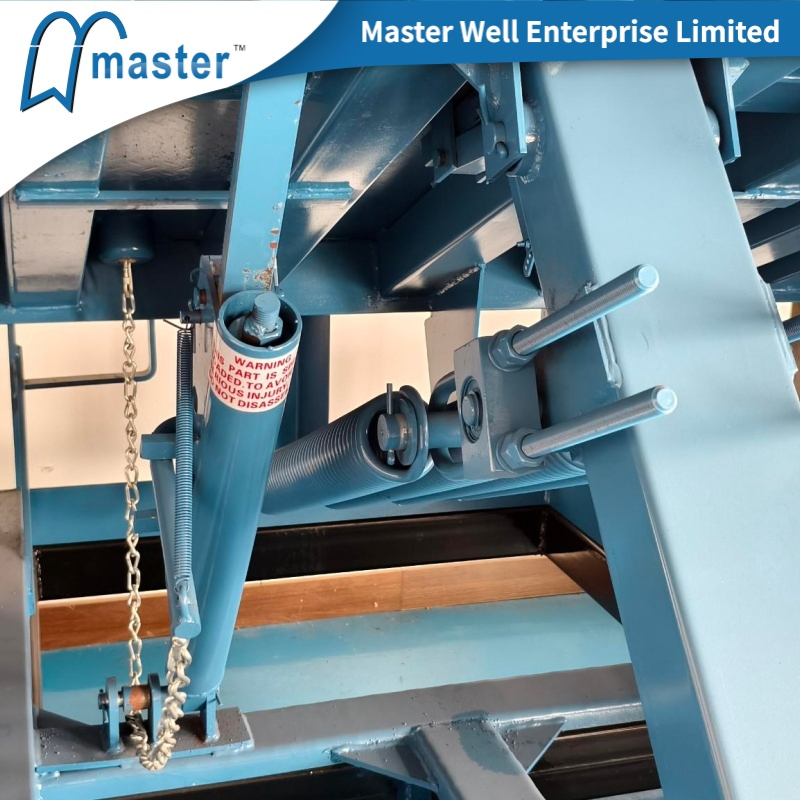

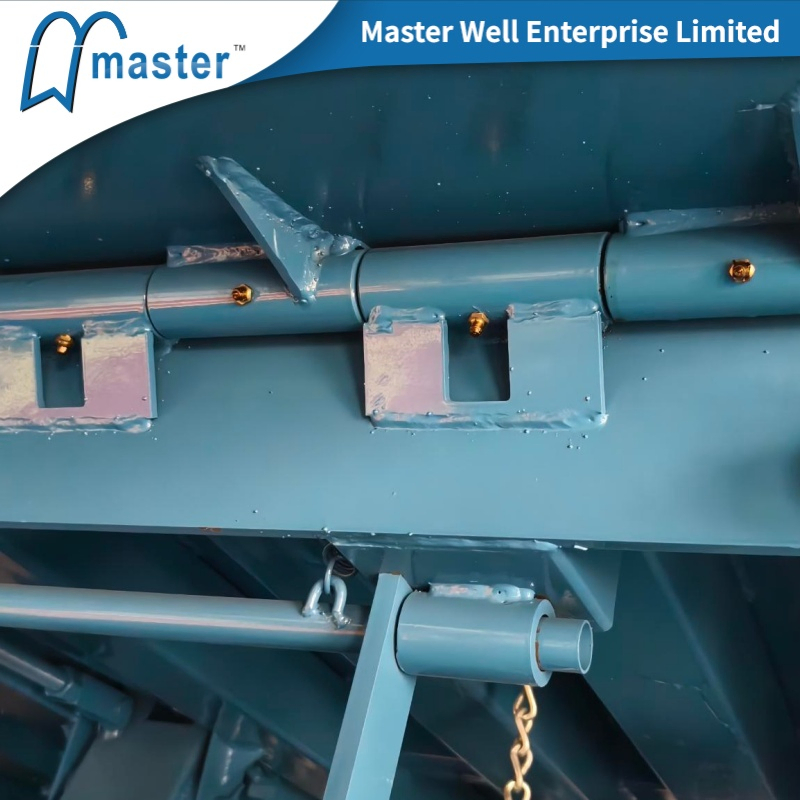

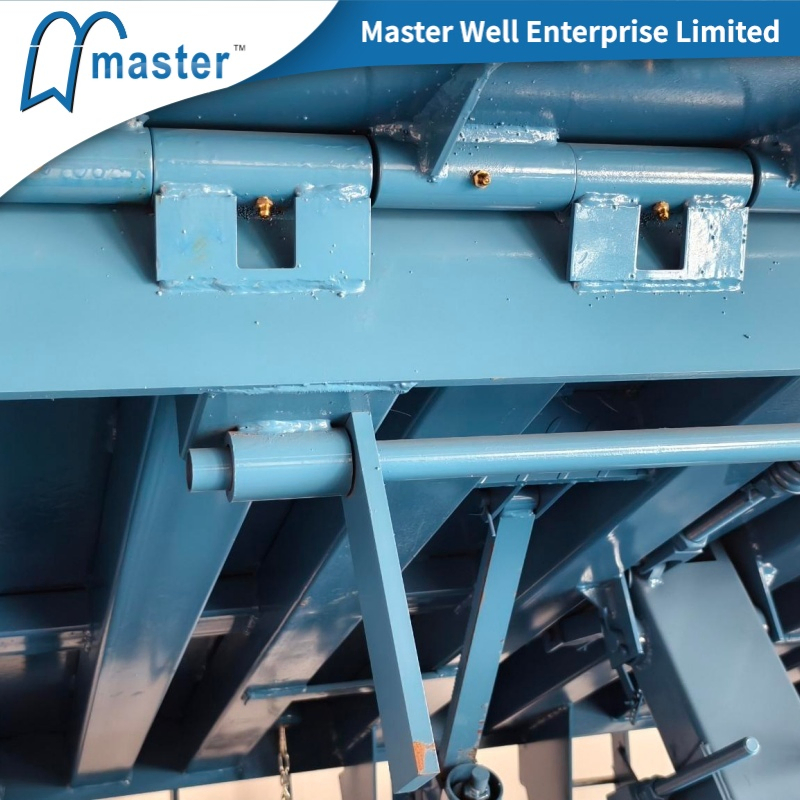

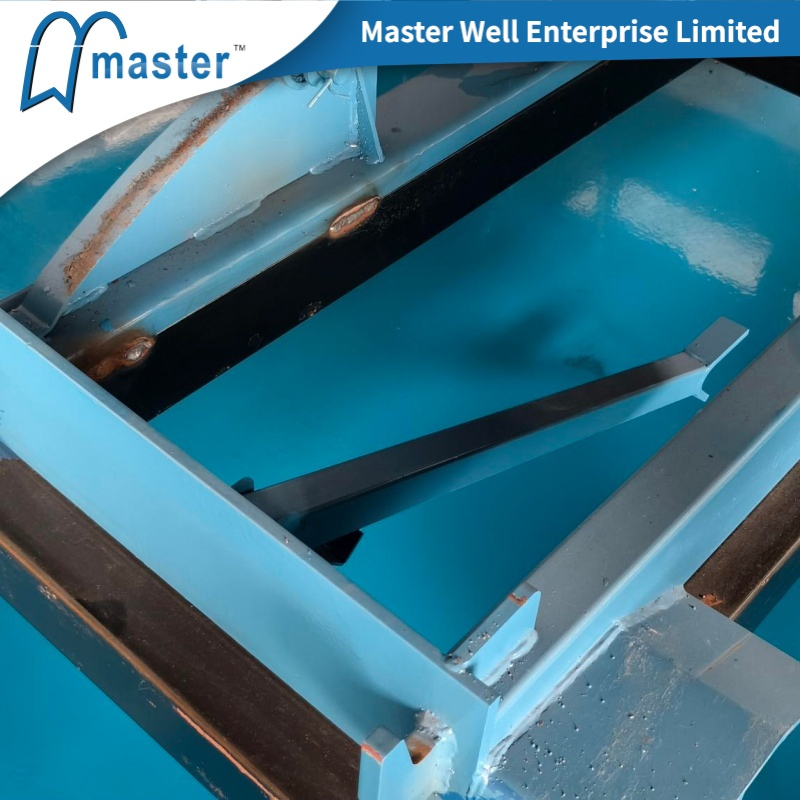

Hot Sell Mechanical Dock Leveler No Power Supply for Warehouse

Trademark: Master Well
Loading Capacity: 6000kg/ 8000kg
Bumpers: 500*200*100mm
Working Range: -300mm to +300mm
System: 0.75kw, 380V/ 50Hz
Support Profile: C Steel Profile
Swinging Lip: Single 16 mm thickness, 400 mm length
Upper Plate: 8 mm thick, Anti-Skate Steel Plate
Specification: 2.5 CBM
Production Capacity: 1000 Sets/Month
Application: Workshop Crane, Warehouse Crane
  • Master Well

Availability:
Quantity:

Mechanical dock levelers are operated entirely by hand. They are suitable for use at auxiliary bays—serving as a contingency during power outages—or in explosion-proof zones. Their primary distinction from hydraulic loading docks is that they do not rely on an external power supply.

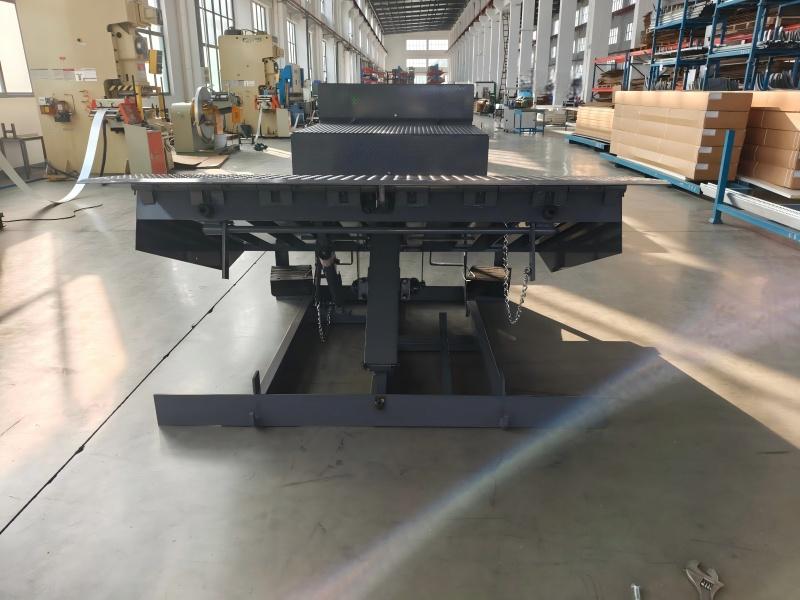

Mechanical dock levelers

Spare Parts Details

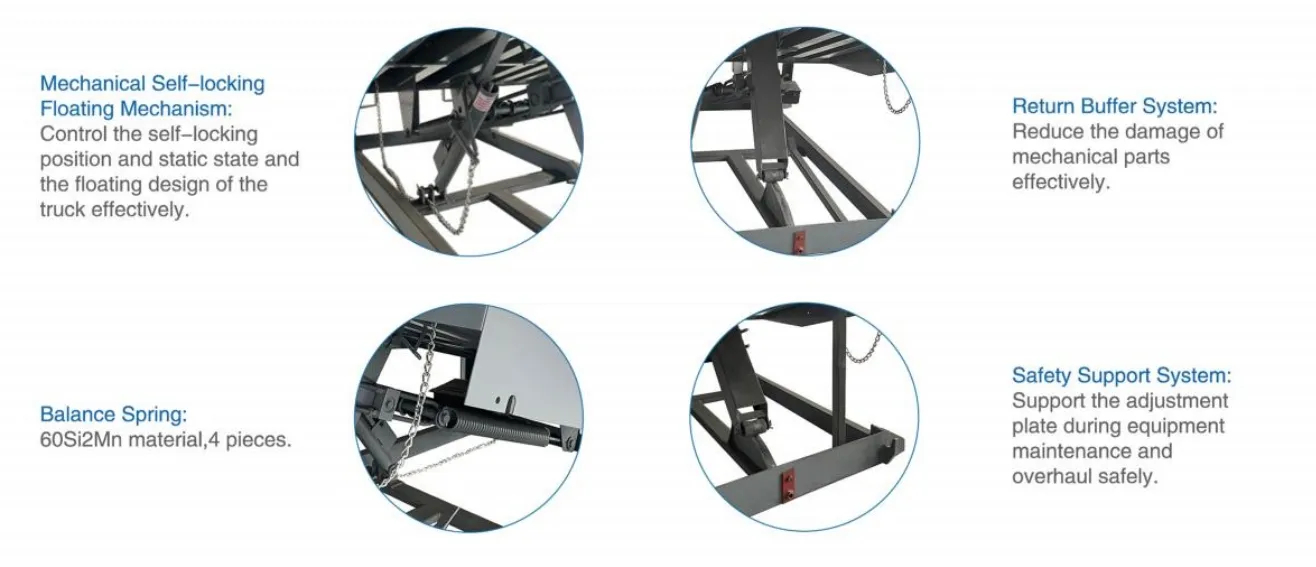

Mechanical dock levelers details

Packaging & Shipping

Packing Material

PE film on surface with bubble wrap and carton sheet for protection

Packing Size

For 2000x2500x500mm, W2000XL2500XH500mm

Loading Capacity

For 2000x2500x500mm, 8sets / 20GP, 16sets / 40GP

Mechanical dock levelers packaing

FAQ

Does this dock leveler need electricity?

No power required at all, fully manual spring operation.

What is the maximum loading capacity?

Standard 6T/8T/10T. Mechanical type is not recommended over 10T, we suggest hydraulic model for larger tonnage.

Is it easy to install?

Standard pit size compatible with hydraulic levelers. We provide official pit drawing and installation guidance.

What is your MOQ?

No min order for dock leveler.

Can you do the full set products according to my project drawing?

Yes, our engineer will check your project drawings to make sure its accuracy for each different fittings and quantity.

What kinds of payment you accept?

We usually accept T/T, L/C, Western Union, etc. If you prefer other payments terms, please feel free to discuss with us.

We want be your agent of our area. How to apply for this?

Please send your idea and your profile to any e-mails of us. Let's cooperate.

Do you produce other products? Do you also produce accessories?

Yes, we also produce Glass aluminum sectional Door,Industrial door, High speed door, Rolling shutter door, Dock leveler, Dock seal, Motor&Gate openers; We produce parts by ourselves in order to control quality and cost.

Product

Mechanical dock leveler

Product model

MDL

Size range

Customizable

Dynamic load

Customizable

Swinging Lip

Q345 Alloy Steel, 16mm thickness

Upper Plate

Q345 Alloy Steel, 6mm thickness anti-skate steel plate from Bensteel

Support Profile

100*100 rectangular steel*8

Support Leg

Q345 +Q235Alloy Steel

Balance Spring

60Si2Mn material, quantity 4 pieces

Working Range

- 300mm / + 300mm

Operating Temperature

-30℃~+50℃

Connection Axis

Shaft diameter 28mm

Safty Foot Guard

Galvanized steel thickness 1.5mm

Connection Hinge

10mm thick hinge (Open Hinge)

Surface Treatment

Sand blasting and then powder coated

Repair Support Rod

Standard

Anticollision Block

Standard

Open method

Manual

Color

Blue,Grey,Black,other customization options are available.

Country of origin

China

Brand

Master Well
