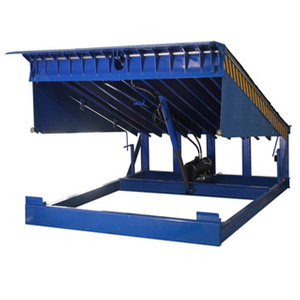

Automatic Portable Truck Loading Dock Leveler

Master Well Electric Hydraulic Dock Leveller with Flap is designed to provide substantial cost savings on equipment maintenance, fragile goods damage and personnel injurise.
Operation very convenient, make the loading and unloading job easy and fast, improve Logistic Efficiency;
Installation and service going very way and the quality very stability and long life time using.
  • Master Well

Availability:
Quantity:

Automatic Portable Truck Loading Dock Leveler

Characteristics

Master Well Electric Hydraulic Dock Leveller with Flap is designed to provide substantial cost savings on equipment maintenance, fragile goods damage and personnel injurise.

Operation very convenient, make the loading and unloading job  easy and fast, improve Logistic Efficiency;

Installation and service going very way and the quality very stability and long life time using.

mechanical dock leveler

Material Description
Upper Plate
8 mm thickness, anti-skate steel plate
Swinging Lip
Single 16 mm thickness, 400mm length
Shaft
28mm galvanized
Foot Guard
Single galvanized,1.5 mm thickness
Support Profile
L Steel Profile,4 mm thickness
Control box
IP65, Monitor can display using times and DTCS, split control system , emergency stop
Safety system
a)self-lockingb)lip emergency stop
Working Range
-300mm to 350mm
Bumpers
400 x 100 x 80mm
Loading Capacity
6000kg-15000kg

Structural Drawing

vertical dock leveler


1. Mould
12. Seeger straight pins of the lip
2. Hydraulic control unit
13. Stright Pin body of the body
3. Upper plate
14. Right foot guard
4. Left foot guard
15. Flange fixing - upper plate cylinder
5. Control unit support
16. Upper plate rotation pivot
6. Swinging lip
17. Seeger upper plate rotation pivot
7. Left short shaft
18. Stright Pin body of the upper plate
8. Shaft fixing pins
19. Upper plate cylinder
9. Right long shaft
20. Upper plate cylinder shaft pin
10. Cylinder of the lip
21. Seeger upper plate cylinder pins
11. Pin of the lip cylinder rod

Spare part Details

container dock leveler

Swinging Lip
Lip is very import part bettween truck and dock leveler Connect Part, we use the steel material from Baosteel, single plate 16mm thickness, are difference compare with Chinese double welding plate, more stronger than others.
Hinge connection
Hinge and hinge sleeve conneced with the motherboard do keel welding connection.The surface of the connecting shaft hinge by electroplating.Smooth and noise reduction.
Support profile
We use 11 pcs L profile, compare with other supplier, our quality will be better than the products use 3-4 pcs.
Hydraulic Unit
Hydraulic pump with oil tank together. Save the place and easy for maintenance
Security block
In case of accidental moving of the truck, the dock leveller will be blocked with a short stroke ( according to the applied weight).
Control Box
IP65, Monitor can display using times and DTCS, Split control system.
