Shipping Cushion PVC Sponge Dock Shelter

Color:customized
Size:customized
Material:PVC
Sales models:wholesale or retail
Min order:1 sets.

  • customized
  • MasterWell
Quantity:
Product Description

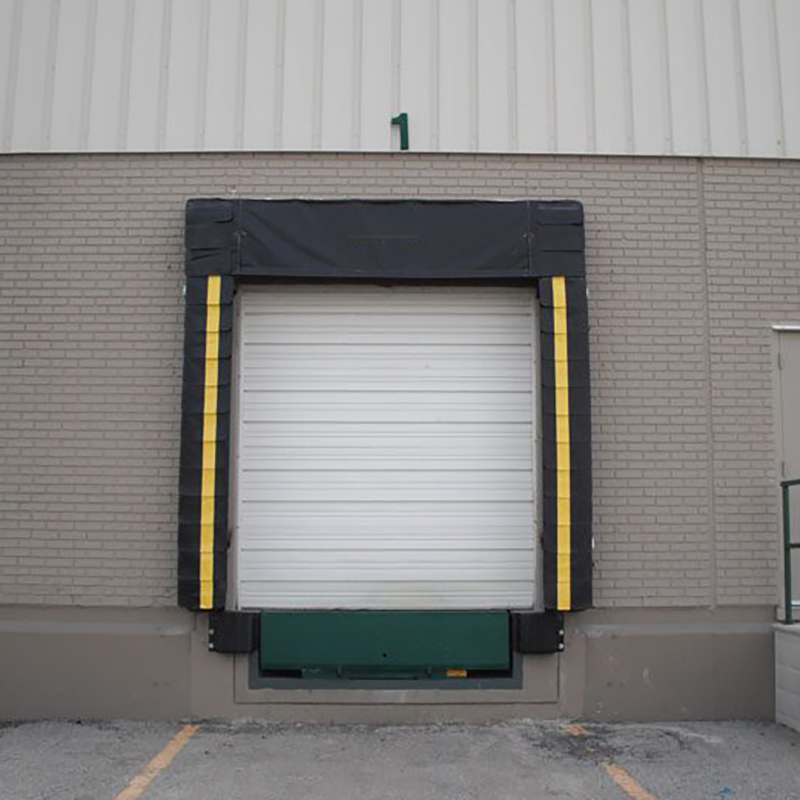

Cushion PVC Sponge Dock Seal

Fixed front curtain, largely meet the requirements of all types of cars of different height;


Cushion dock seal, coupled with high elastic sponge, make the distance between car tail and door seal tight sealing, reducing energy consumption.

shipping dock shelter

Cushion PVC Sponge Dock Seal Details

shipping dock seals
Configuration

Top of the sponge Seals
1item
The fabric is made of wear-resistant vinyl crude fiber material.
The lining is filled with high elasticity sponge pad, with 98% restorability and flexibility in -40 ℃ environment.
Vertical sponge Seals
2 item
positive Distribution wear-resistant louver folds, providing additional wear protection, effectively extending the life of the door seal;
The middle of the reflective strip with a warning, with better security.
Hardware
1 set
Surface galvanized anti-rust treatment, an increase of product durability.
Parameters
Width
3000/3200/3400 mm
Thickness of side PVC sheet
0.5 mm
Height
3000/3200/3400 mm
Height of top PVC curtain
1000 mm
Dock shelter depth
250 mm
Width of side PVC curtain
300 mm
Sponge thickness
25/20mm
Frame:
High quality steel strips,covered by transparent PVC or Color PVC material
PVC Color:
Black/Blue

Thickness of front PVC sheet
0.9 mm
Operating temperature range
-35℃ - +70℃


Mechanical Type Dock Shelter

The foldable door seal series of aluminium alloy structure is an ideal configuration scheme for medium strength loading and unloading places.


The front curtain board made of special PVC material has the advantages of high elasticity, wear resistance and tensile strength. During the loading and unloading process, the tail of the loading and unloading vehicle enters the door seal. The top curtain and side curtain can be fully close to the vehicle to ensure sealability.

PVC cushion dock seals
Specification
Width mm
3000, 3200, 3400,
Height mm
3000, 3200, 3400, 4400
Thickness
3mm
Standard Configuration
single layer
Optional configuration
double layer
Profile color
Aluminum intrinsic color(RAL9006)
Parameters
Front curtain
Side PVC curtain
Longitudinal Tensile Force
>550N
Tensile resistance
250N
Transverse Tensile Force
>900N
Thickness
0.5mm
ultimate tensile strength
250N/mm²
Weight
0.7kg/mm
Metal friction coefficient
0.3
Working temperature
-35℃—+70℃
PVC Friction Coefficient
0.4
Aluminum alloy frame
Thickness
3mm
Back-end Profile Size
     50*44mm
Weight
3.6kg/mm
Front end profile size
 45*44mm
Working temperature
-35℃—+90℃
Frame size
 50*25*2.5mm


Air Pump Type Dock Shelter


Features


Installation applied for requirements of high insulation and strong sealing;

High efficient air blower offering stable air pressure;

After loading & unloading, the air bag exhausted and packed into small package, guarantee a longer service life of dock seal.

adjustable dock shelter
Specification
Width mm
3410,3610
Height mm
3300, 3800, 4900
Moving range of top air bag
900(1200)
Moving range of side air bag
600
Top mask
500
Side mask
200
Profile color
Aluminum intrinsic color(RAL9006)
Panel color
 White (RAL9003)
Control mode
Switch/Platform Control Unit
Parameters
Power supply
380V/50HZ
Thickness
3mm
Power
0.75kw
Unit Weight
3.6kg/m
Control unit
Outside
Airbag
0.5mm
Protection Class
IP54
Material
Cordura 1000
Airbag average time
30s
Thickness
0.5mm
Working temperature
-35℃ - +70℃
Unit weight
0.4kg/m
PVC curtain
3.6kg/m
The largest tensile ability
>290N/mm ^2
Panel thickness
50mm
Color
white(RAL 9003)
