Quantity: | |
---|---|

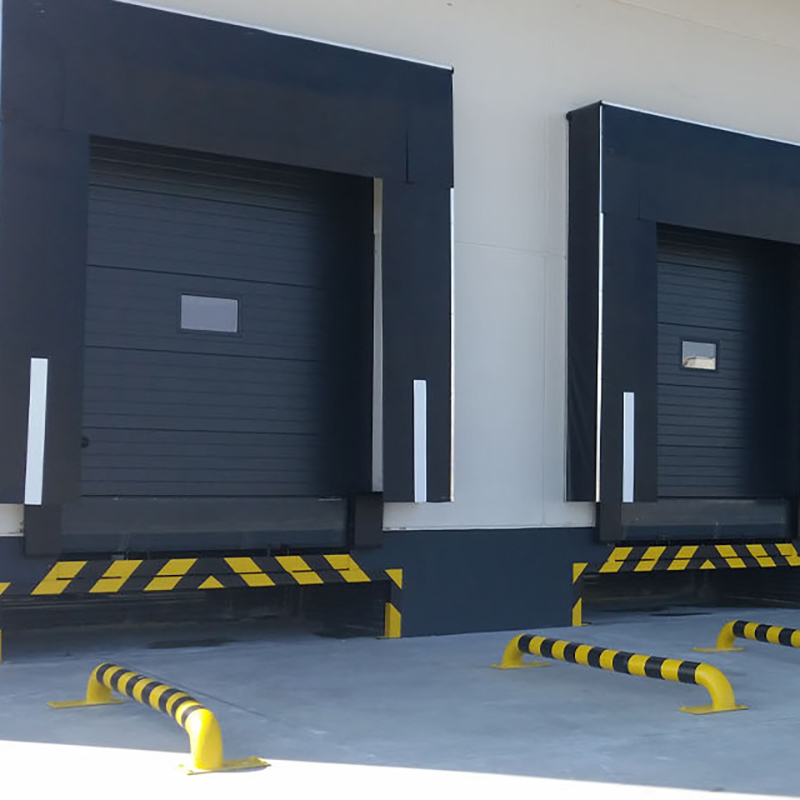

Fixed front curtain, largely meet the requirements of all types of cars of different height;
Cushion dock seal, coupled with high elastic sponge, make the distance between car tail and door seal tight sealing, reducing energy consumption.
Configuration | |||
Top of the sponge Seals | 1item | The fabric is made of wear-resistant vinyl crude fiber material. The lining is filled with high elasticity sponge pad, with 98% restorability and flexibility in -40 ℃ environment. | |
Vertical sponge Seals | 2 item | positive Distribution wear-resistant louver folds, providing additional wear protection, effectively extending the life of the door seal; The middle of the reflective strip with a warning, with better security. | |
Hardware | 1 set | Surface galvanized anti-rust treatment, an increase of product durability. | |
Parameters | |||
Width | 3000/3200/3400 mm | Thickness of side PVC sheet | 0.5 mm |
Height | 3000/3200/3400 mm | Height of top PVC curtain | 1000 mm |
Dock shelter depth | 250 mm | Width of side PVC curtain | 300 mm |
Sponge thickness | 25/20mm | Frame: | High quality steel strips,covered by transparent PVC or Color PVC material |
PVC Color: | Black/Blue | ||
Thickness of front PVC sheet | 0.9 mm | Operating temperature range | -35℃ - +70℃ |
The foldable door seal series of aluminium alloy structure is an ideal configuration scheme for medium strength loading and unloading places.
The front curtain board made of special PVC material has the advantages of high elasticity, wear resistance and tensile strength. During the loading and unloading process, the tail of the loading and unloading vehicle enters the door seal. The top curtain and side curtain can be fully close to the vehicle to ensure sealability.
Specification | ||||
Width mm | 3000, 3200, 3400, | |||
Height mm | 3000, 3200, 3400, 4400 | |||
Thickness | 3mm | |||
Standard Configuration | single layer | |||
Optional configuration | double layer | |||
Profile color | Aluminum intrinsic color(RAL9006) |
Parameters | |||
Front curtain | Side PVC curtain | ||
Longitudinal Tensile Force | >550N | Tensile resistance | 250N |
Transverse Tensile Force | >900N | Thickness | 0.5mm |
ultimate tensile strength | 250N/mm² | Weight | 0.7kg/mm |
Metal friction coefficient | 0.3 | Working temperature | -35℃—+70℃ |
PVC Friction Coefficient | 0.4 | Aluminum alloy frame | |
Thickness | 3mm | Back-end Profile Size | 50*44mm |
Weight | 3.6kg/mm | Front end profile size | 45*44mm |
Working temperature | -35℃—+90℃ | Frame size | 50*25*2.5mm |
Features
Installation applied for requirements of high insulation and strong sealing;
High efficient air blower offering stable air pressure;
After loading & unloading, the air bag exhausted and packed into small package, guarantee a longer service life of dock seal.
Specification | ||||
Width mm | 3410,3610 | |||
Height mm | 3300, 3800, 4900 | |||
Moving range of top air bag | 900(1200) | |||
Moving range of side air bag | 600 | |||
Top mask | 500 | |||
Side mask | 200 | |||
Profile color | Aluminum intrinsic color(RAL9006) | |||
Panel color | White (RAL9003) | |||
Control mode | Switch/Platform Control Unit |
Parameters | |||
Power supply | 380V/50HZ | Thickness | 3mm |
Power | 0.75kw | Unit Weight | 3.6kg/m |
Control unit | Outside | Airbag | 0.5mm |
Protection Class | IP54 | Material | Cordura 1000 |
Airbag average time | 30s | Thickness | 0.5mm |
Working temperature | -35℃ - +70℃ | Unit weight | 0.4kg/m |
PVC curtain | 3.6kg/m | The largest tensile ability | >290N/mm ^2 |
Panel thickness | 50mm | Color | white(RAL 9003) |
1. Low MOQ: One set is available for checking our quality first conveniently.
2. Good Quality: Your client satisfied on our quality. You can get good reputation from your market and obtain more orders.
3. Good Service: Our professional service before and after sale.
4. The reasonable price
5. Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
6. OEM is welcome
7. Rot-proof rubber seal for maximum light and air sealing between the sections.
8. Energy saving heat insulation due to high-strength PU rigid foam. The special foam meets the high quality requirements of industrial doors.
9. High-level resistance to bending and twisting. Secures garages against burglars and makes your door wind and weather proof.
10. Robust surface, easy to clean, the finished surface is extremely robust and easy to maintain
