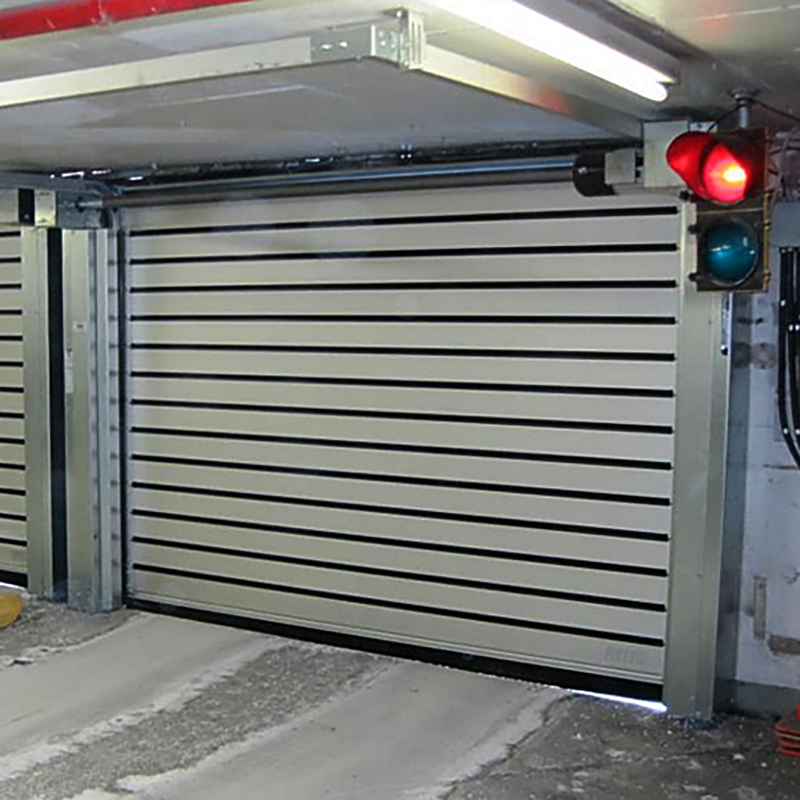

Efficient Logistics Dust Proof Metal Spiral High Speed Hard Fast Rolling Doors

Availability:
Quantity:

Efficient Logistics Dust Proof Metal Spiral High Speed Hard Fast Rolling Doors

Features
&middot;Suitable for door opening size against wind pressure positive or negative <65kg/m2

&middot;Door curtain is made by aluminum sectional type curtain, which filled with high density polyurathan, 40mm thickness

 Optional: Transparent window, Transparent panels made of Extruded aluminum with PC sheet

&middot; Portal frame structure made by 2mm thick high-quality corrosion of cold rolled steel plate, silver gray painting spray, in compact appearance, durable with good performance

&middot;Control Box: IP55 box is compatible with all kinds of protection devices, which can be used to control the PLC, and the overall safety of the vehicle and goods by using the digital program; blackout manual rocker, can be easily opened or closed.

&middot;Running speed: Switch speed in 0.6m/sec; Manual operation in case of power failure.



Parameters:

Applications:  Universal-indoor openings in industrial, storage and commercial facilities
Maximum Size: WxH: 8000mmx6500mm
Opening Speed: 0.8m/s-2.5m/s, adjustable
Closing Speed:  0.6m/s-1.0m/s, adjustable
Working Temperature Range: -25 to 60 ℃
Hardware Materials: Frame and sides - Galvanized steel
Track guides -  Extruded aluminum

Outer Track Cover - Galvanized steel / 304 Stainless steel
Control Box:  Painted steel housing
Safety class - IP55
Variable speed drive
Drive System:  Supply voltage - 220V 50Hz/380V 50Hz
Power - 0.5KW - 5.5KW
Safety class - IP55
Final shaft position indicated by encoder
Wind Pressure Resistance: 450 N/M2
Operating Life: 500 000 cycles

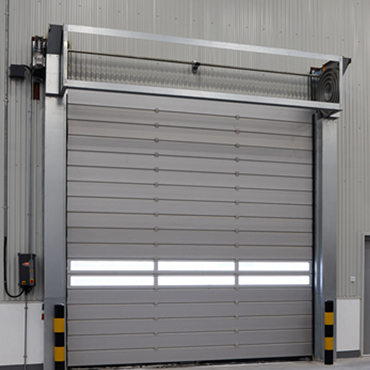

Portal Frame Structure:
logistics hard fast doors

Aluminum Sprial Roller Door Accessories:
dust proof hard fast doors

Opeartion Options:

metal hard fast doors


FAQ:
Q1: What is your MOQ?

A:  One set PVC fast rolling door is available.

Q2: How is the motor quality?
A: The motors are good quality and very stable preformance. They are all made in China but German brand.

Q3:  How can I get a price of needed Aluminum spiral fast roller door?
A: Please give the exactly size and quantity of your required door. We can give you a detail quotation based on your requirements.

Q4:  Which kinds of payment you accept?
A: We usually accept T/T in advance, L/C for large sum, Western Union, etc. If you prefer other payments terms, please discuss with us


efficient hard fast doors


Customers Feedback:

We achieved win-win in business, we are also friends.

                                                                                                                   --- Mr Sam Leo-Andoh

MASTER can offer a wide variety of doors for homes and business. Their doors make our company perfect solution to our customers.

                                                                                                                   --- Mr Adam Seipl

They are reliable business partner. High speed doors from MASTER add a functional and distinctive appearance to our business.

                                                                                                                   --- Mr. Sebastian

I visited their factory and checked their high speed doors. They are very professional. I just placed my order to them.

                                                                                                                   --- Mr. Saeng

Choose us, not only your suppliers but also your good friends!
