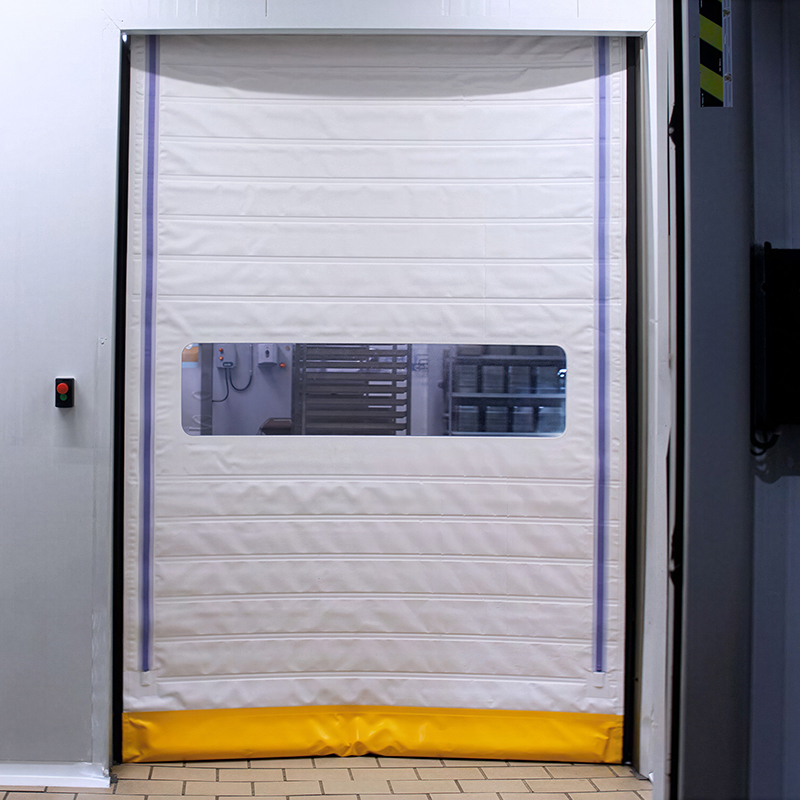

High-speed Roll Up Freezer Cold Storage Door

Master well High-speed Roll Up Freezer Cold Storage Door is designed to deliver significant energy savings in cold storage applications, with operating speeds up to 2.0m per second the fast cycle time maximizes productivity and energy savings. The advanced technology minimizes the potential for frost build-up and the need to address unwanted frost with electrical heating.
  • Master Well

Availability:
Quantity:

High-speed Roll Up Freezer Cold Storage Door: Advanced insulated industrial roll up door designed for refrigerated warehouses and cold chain logistics to maximize energy efficiency and throughput.

Rapid Operation: Operating speed up to 2.0 meters per second ensures minimal cold air loss during opening and closing cycles in high traffic logistics areas.

Anti Frost Technology: Proprietary sealing and insulation system minimizes frost build-up eliminating the need for electrical heating and reducing long term maintenance costs.

Cold Chain Applications: Ideal for cold storage facilities, food processing plants, and freezer warehouses featuring significant energy savings and durable industrial construction.

Industrial Supply: Professional customized dimensions and installation support available with robust export packaging for global cold chain contractors and warehouse operators.

Frame Structure

Extruded aluminum side guide, Galvanized steel frame

Curtain

0.9mm PU

Frame Options

Galvanized Steel/Aluminum Steel/Stainless Steel

Max available width

3300mm

Max available height

5000mm

Opening speed

0.8m/s-1.6m/s, adjustable

Closing speed

0.6m/s, adjustable

Working temperature

-25℃~+65℃

Motor power

1.5Kw

Control box

IP55

Warranty

5 years for mechanical parts, 1 year for electronic parts

The structure of product


Options of operation

Our door's opening way has the push wall switch, remote control, pull rope switch, magnetic loop, radar sensor, signal lamp, etc.


Packing & Delivery

1.Small quantity: Carton + Winding film + Wooden box

2.The full container quantity (20'GP/40'GP/40'HQ): Carton + Winding film
