High Speed Cold Storage Roll up Doors

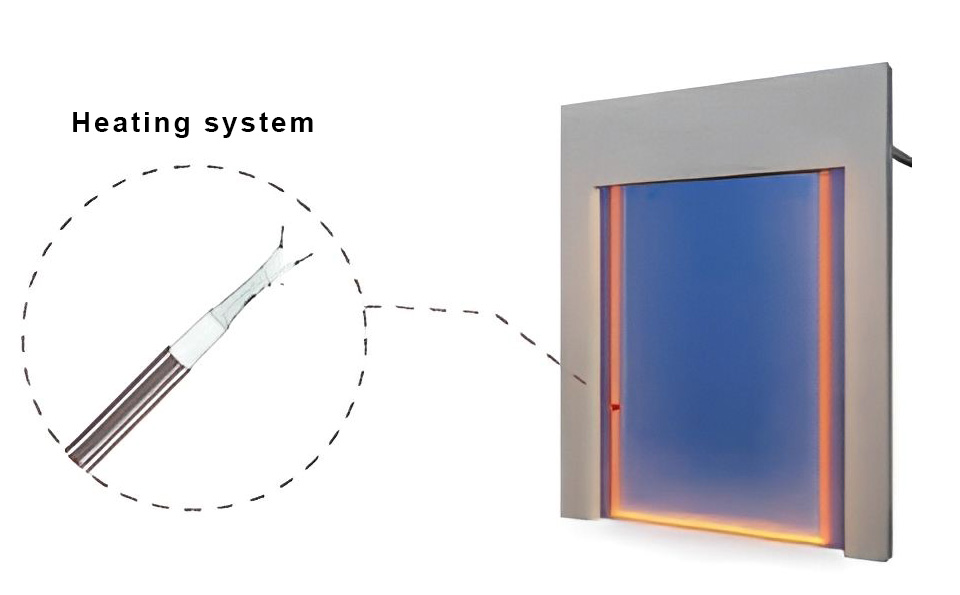

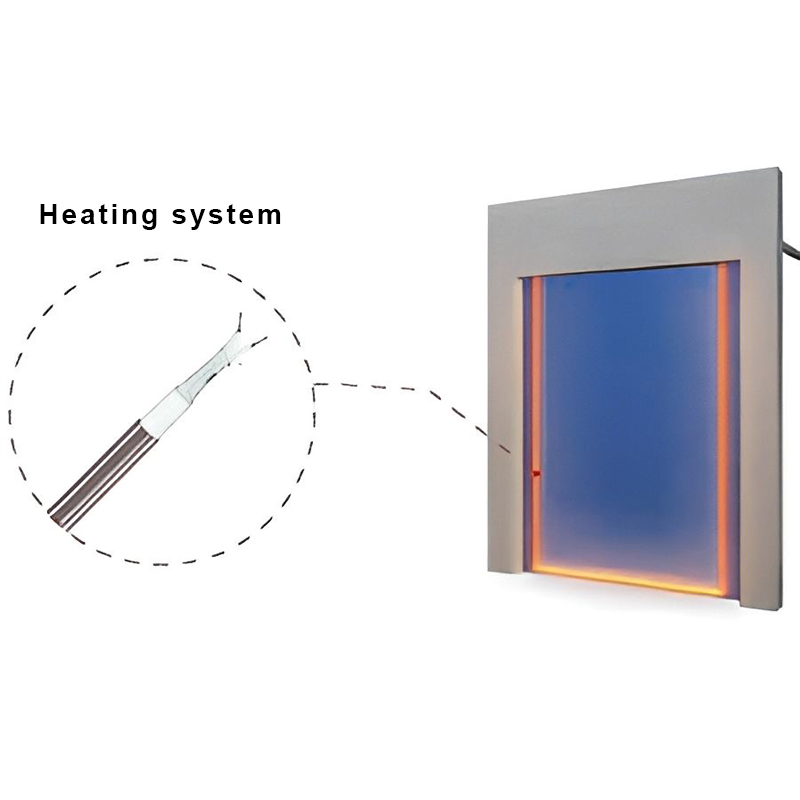

Master well low temperature high speed door is designed to deliver significant energy savings in cold storage applications, with operating speeds up to 2.0m per second the fast cycle time maximizes productivity and energy savings. The advanced technology minimizes the potential for frost build-up and the need to address unwanted frost with electrical heating.
  • Master Well

Availability:
Quantity:

Master well High Speed Cold Storage Roll up Doors is designed to deliver significant energy savings in cold storage applications, with operating speeds up to 2.0m per second the fast cycle time maximizes productivity and energy savings. The advanced technology minimizes the potential for frost build-up and the need to address unwanted frost with electrical heating.

Frame Structure

Extruded aluminum side guide, Galvanized steel frame

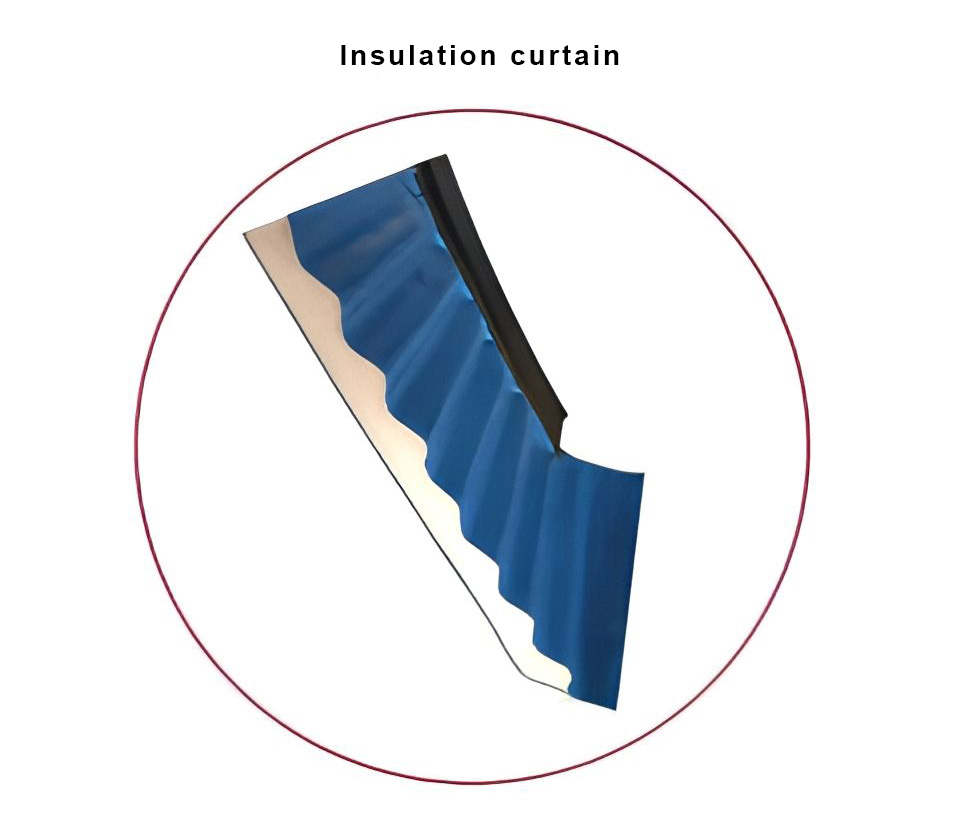

Curtain

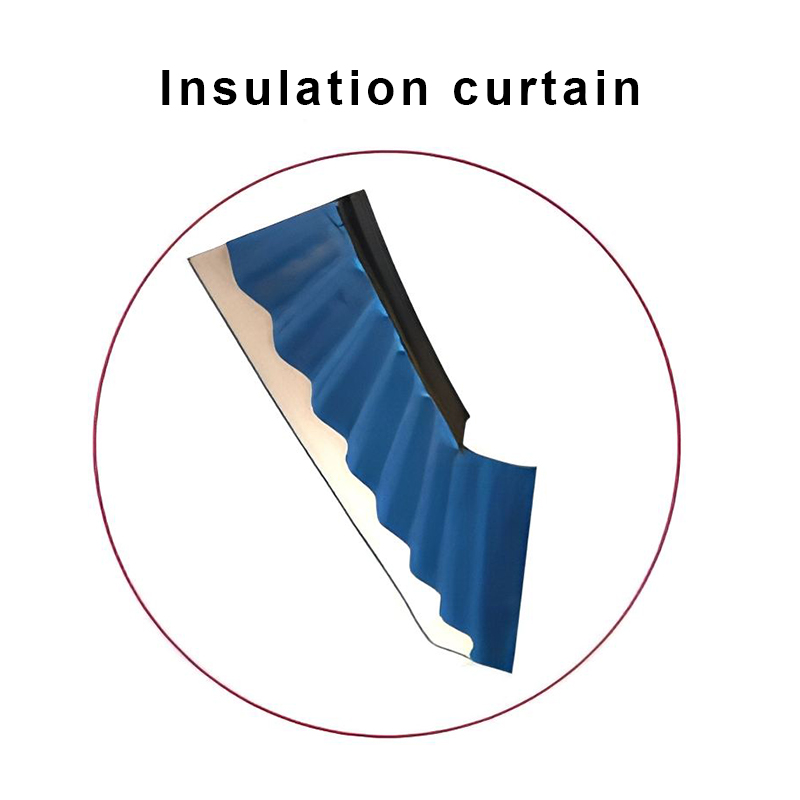

0.9mm PU

Frame Options

Galvanized Steel/Aluminum Steel/Stainless Steel

Max available width

3300mm

Max available height

5000mm

Opening speed

0.8m/s-1.6m/s, adjustable

Closing speed

0.6m/s, adjustable

Working temperature

-25℃~+65℃

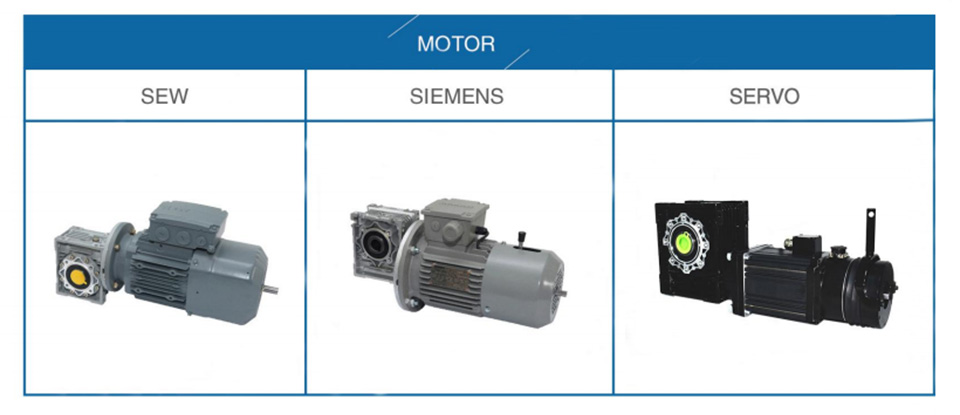

Motor power

1.5Kw

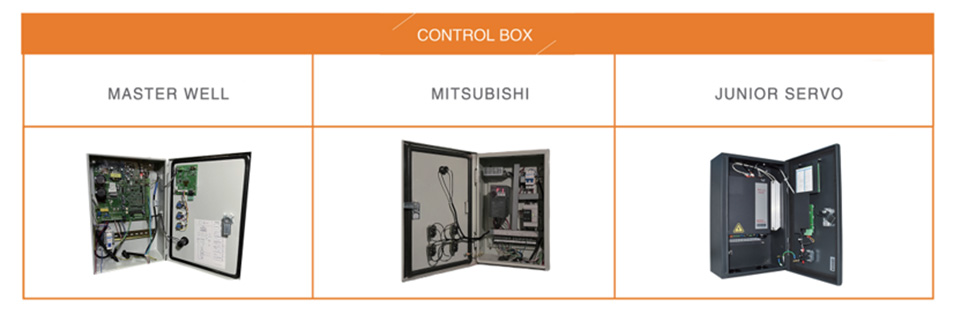

Control box

IP55

Warranty

5 years for mechanical parts, 1 year for electronic parts

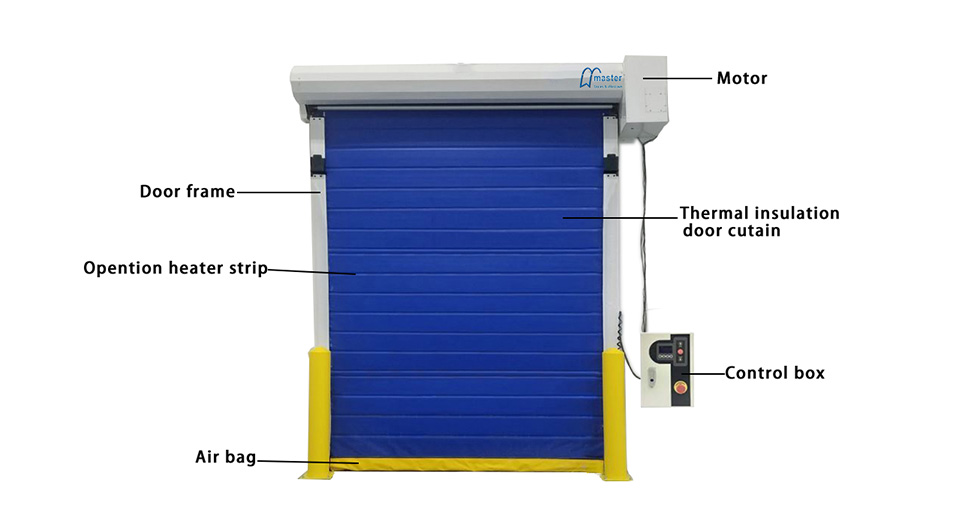

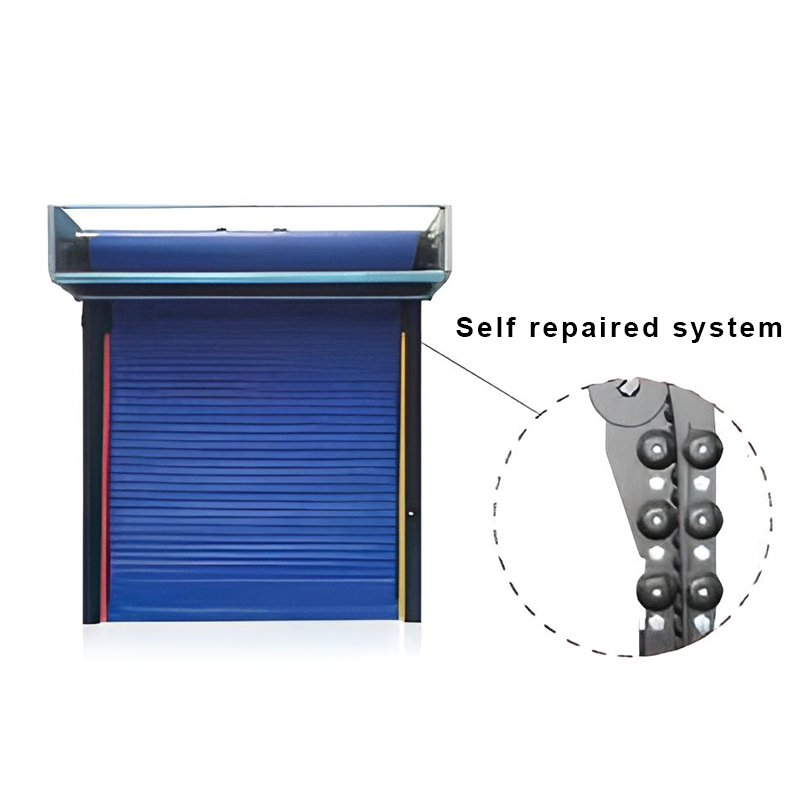

The structure of product

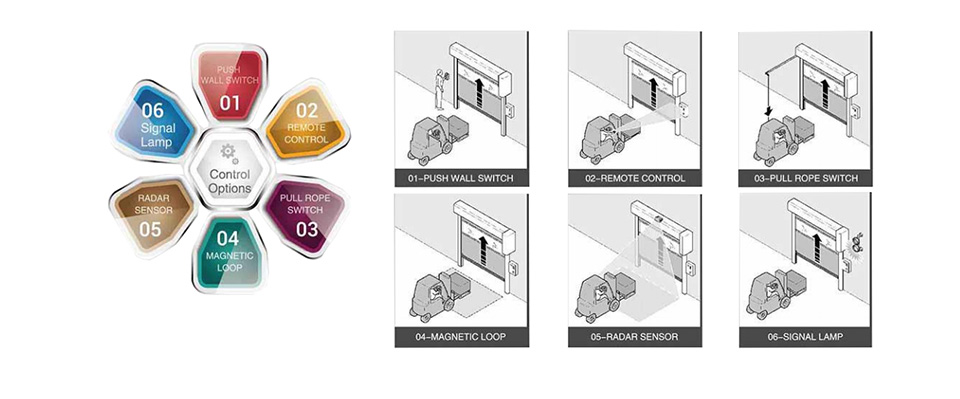

Options of operation

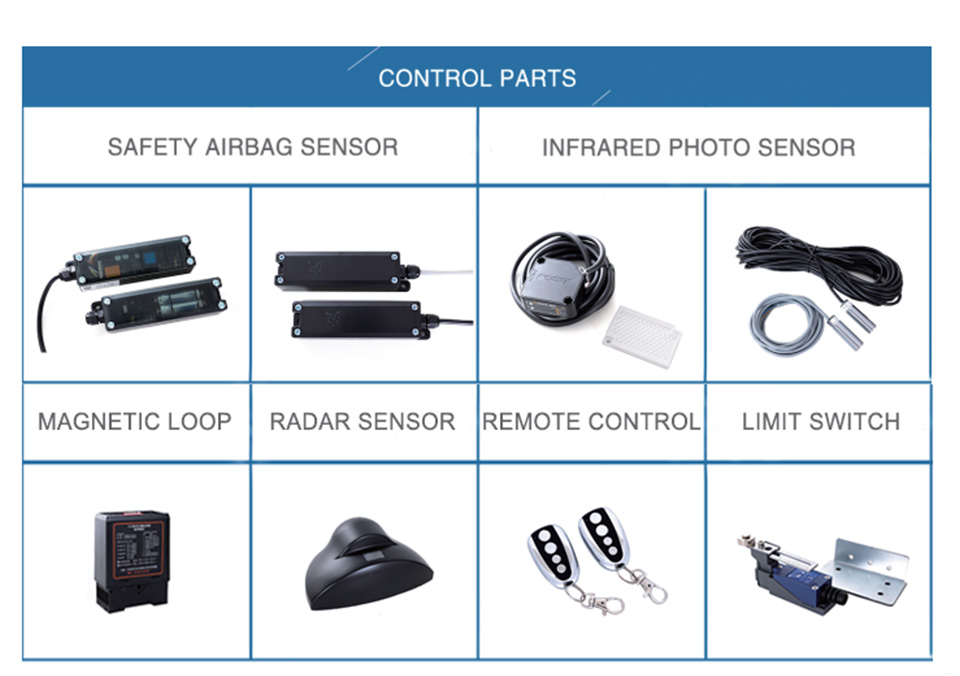

Our door's opening way has the push wall switch, remote control, pull rope switch, magnetic loop, radar sensor, signal lamp, etc.


Packing & Delivery

1.Small quantity: Carton + Winding film + Wooden box

2.The full container quantity (20'GP/40'GP/40'HQ): Carton + Winding film
