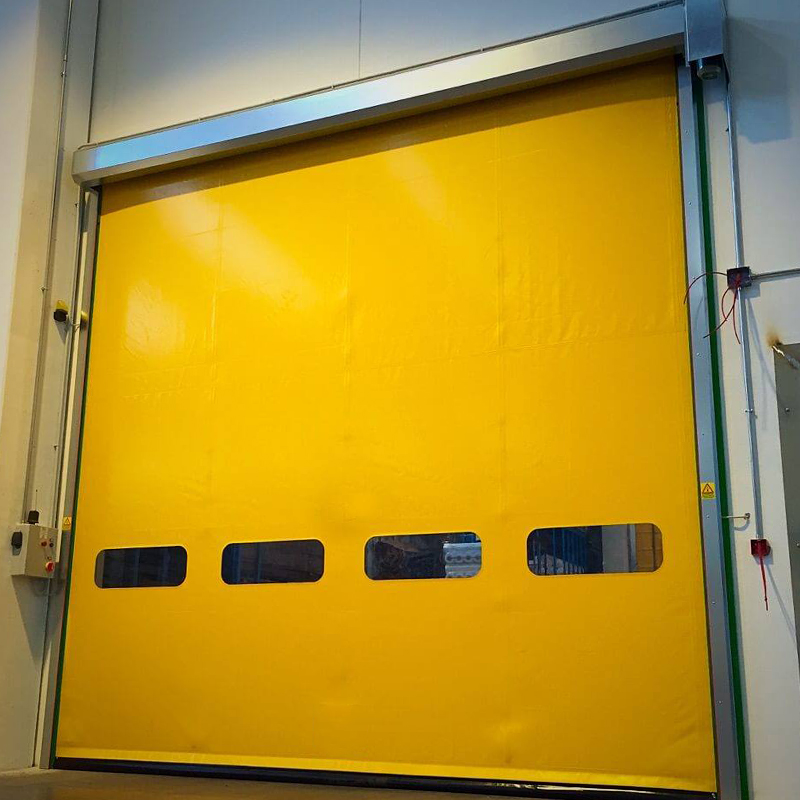

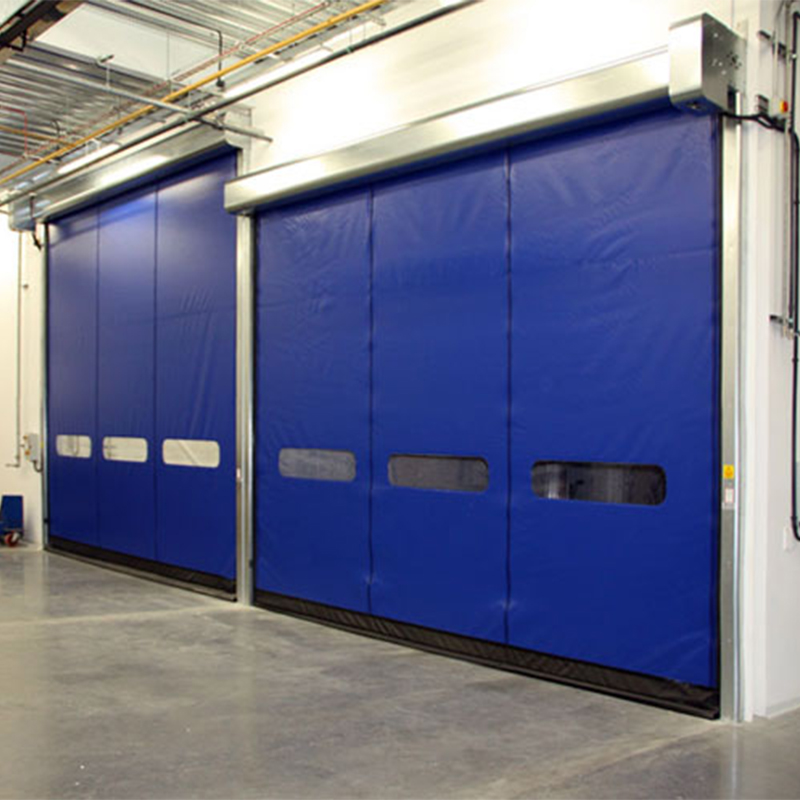

Auto Repair Fast Roller Door

  • Trademark: Master
  • Origin: Wuxi, China
  • Packing: Less than one container, wood cases is needed; Full container, carton box only.
  • Min order: 1 SET
  • TransTime: With 5 - 20 working days
  • Transportation: 1
  • Payment: T/T
Quantity:

Auto Repair Fast Roller Door:
Features
·Suitable for door opening size against wind pressure positive or negative <65kg/m2

·Door curtain is made of high strength PVC sheet

· Portal frame structure made by 2mm thick high-quality corrosion of cold rolled steel plate, silver gray painting spray, in compact appearance, beautiful and durable

·Control Box: IP55 box is compatible with all kinds of protection devices, which can be used to control the PLC, and the overall safety of the vehicle and goods by using the digital program; blackout manual rocker, can be easily opened or closed.

·Running speed: Switch speed in 0.6m/sec; Manual operation by pull shaft(optional) and manual rocker in case of power failure.



Parameters

Applications:  Universal-indoor openings in industrial, storage and commercial facilities
Maximum Size: WxH: 5000mmx5000mm
Opening Speed: 0.8m/s-2.0m/s, adjustable
Closing Speed:  0.6m/s-1.0m/s, adjustable
Working Temperature Range: -25 to 60 ℃
Hardware Materials: Frame and sides - galvanized steel
Drive shaft - galvanized steel 2.5mm x Φ114mm
Track guides - aluminum alloy extrusion
Curtain - SIOEN high-strength polyester textile fiber
Vision panel - 1.5mm thick translucent PVC
Control Box:  Galvanized steel with Powder coated  / 304 Stainless steel
Safety class - IP55

Variable speed drive
Drive System:  Supply voltage - 220V 50Hz/380V 50Hz
Power - 0.55KW - 5.5KW
Safety class - IP55
Final shaft position indicated by encoder
Wind Pressure Resistance: 450 N/M2
Operating Life: 500 000 cycles


Color Options:
Color Options

PLC

Opeartion Options:

Options


FAQ:

Q1: What is your MOQ?

A:  One set PVC fast rolling door is available.

Q2: How is the motor quality?
A: The motors are good quality and very stable preformance. They are all made in China but German brand.

Q3:  How can I get a price of needed high speed pvc fast rolling door?
A: Please give the exactly size and quantity of your required door. We can give you a detail quotation based on your requirements.

Q4:  Which kinds of payment you accept?
A: We usually accept T/T in advance, L/C for large sum, Western Union, etc. If you prefer other payments terms, please discuss with us
